SPC58NG84E7QEH0X - STMicroelectronics

Description: 32-bit Power Architecture MCU for Automotive General Purpose Applications - Chorus family

Download SPC58NG84E7QEH0X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SPC58NG84E7QEH0X - STMicroelectronics - PCB symbol
click to zoom

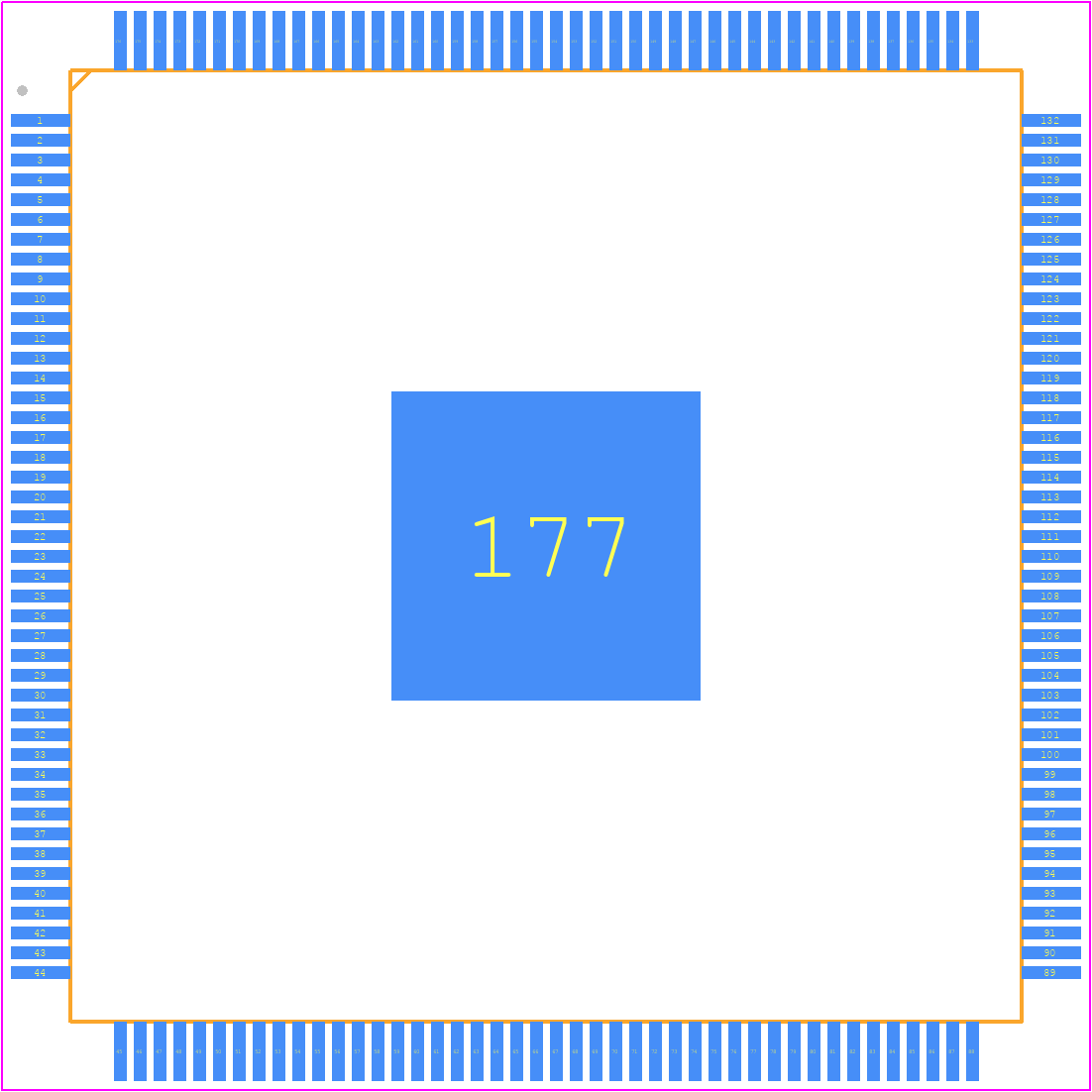

PCB Footprints
SPC58NG84E7QEH0X - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - SPC58NG84E7QEH0X
click to zoom
3D Models
SPC58NG84E7QEH0X - STMicroelectronics - 3D model - Quad Flat Packages - SPC58NG84E7QEH0X
click to zoom

SPC58NG84E7QEH0X Details

  • Manufacturer Part Number:

    SPC58NG84E7QEH0X

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ELQFP-176

  • Country Of Origin:

    Malta

  • ECCN Code:

    5A991.B.4.A

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    30 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    13

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    SPC58

  • Clock Frequency-Max:

    40 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PQFP-G176

  • Length:

    24 mm

  • Number of DMA Channels:

    96

  • Number of Terminals:

    176

  • Number of Timers:

    12

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • RAM (bytes):

    622592

  • ROM (words):

    6291456

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100; ISO 26262

  • Seated Height-Max:

    1.6 mm

  • Speed:

    180 MHz

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    24 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

SPC58NG84E7QEH0X Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout guide in the SPC58NG84E7QEH0X application note (AN5273) which includes guidelines for component placement, routing, and thermal management.
  • The SPC58NG84E7QEH0X has multiple low-power modes, including sleep, stop, and standby. Configuration depends on the specific use case, but generally involves setting the Power Mode Control Register (PMC) and configuring the clock management unit (CMU). Refer to the device's reference manual for detailed instructions.
  • The SPC58NG84E7QEH0X has an operating temperature range of -40°C to 125°C, but this can be extended to -40°C to 150°C with proper thermal management and derating. Refer to the device's datasheet for detailed thermal characteristics.
  • The SPC58NG84E7QEH0X has a built-in secure boot mechanism that uses a combination of hardware and software components. Implementing secure boot requires configuring the Boot Configuration Register (BCR), setting up the secure boot key, and using a secure boot loader. Refer to the device's reference manual and application notes for detailed instructions.
  • The SPC58NG84E7QEH0X has 4MB of built-in flash memory, but it has limitations on endurance (number of erase cycles), data retention, and programming/erasing times. Refer to the device's datasheet for detailed specifications and guidelines for using the flash memory.
