SPC58NG84E7QXC0Y - STMicroelectronics

Description: IC MCU 32BIT 6MB FLASH 176ELQFP

Download SPC58NG84E7QXC0Y Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SPC58NG84E7QXC0Y - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

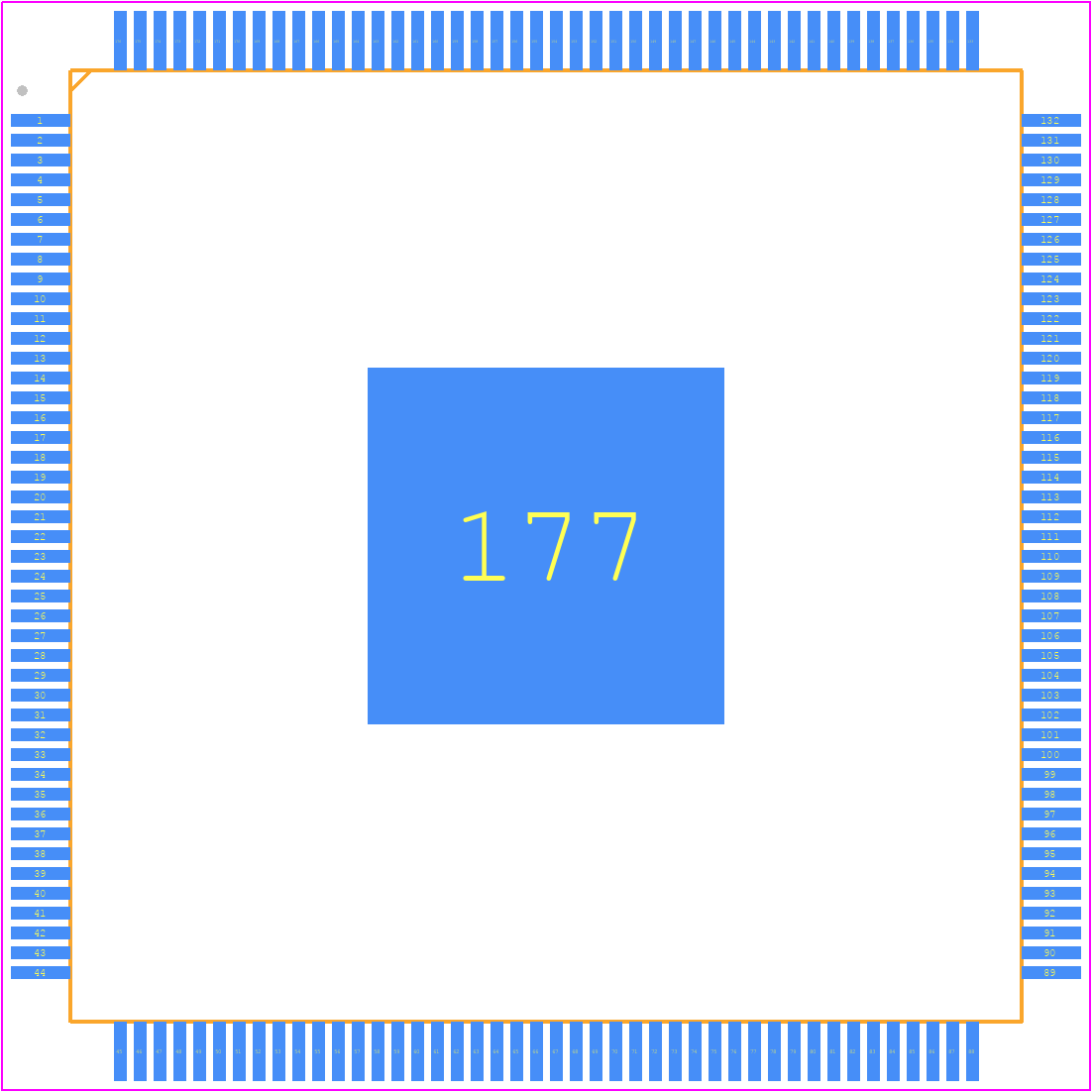

SPC58NG84E7QXC0Y - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - eLQFP176_2
click to zoom
3D Models
SPC58NG84E7QXC0Y - STMicroelectronics - 3D model - Quad Flat Packages - eLQFP176_2
click to zoom

SPC58NG84E7QXC0Y Details

  • Manufacturer Part Number:

    SPC58NG84E7QXC0Y

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ELQFP-176

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    30 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8.38

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    SPC58

  • Clock Frequency-Max:

    40 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PQFP-G176

  • Length:

    24 mm

  • Number of DMA Channels:

    96

  • Number of Terminals:

    176

  • Number of Timers:

    12

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • RAM (bytes):

    622592

  • ROM (words):

    6291456

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.6 mm

  • Speed:

    180 MHz

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    24 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

SPC58NG84E7QXC0Y Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout guide in their application note AN5161, which includes guidelines for component placement, routing, and thermal management.
  • The clock settings for the SPC58NG84E7QXC0Y can be configured using the STMicroelectronics' SPC5Studio development environment, which provides a graphical interface for setting clock frequencies, clock sources, and clock dividers.
  • The SPC58NG84E7QXC0Y has an operating temperature range of -40°C to 125°C, as specified in the datasheet. However, it's recommended to consult the device's reliability report and thermal management guidelines to ensure reliable operation within the specified temperature range.
  • STMicroelectronics provides a secure boot implementation guide in their application note AN5353, which includes details on how to configure the device's boot mode, generate secure boot keys, and implement secure boot mechanisms using the SPC5Studio development environment.
  • The power consumption characteristics of the SPC58NG84E7QXC0Y are provided in the datasheet, including typical values for active mode, sleep mode, and standby mode. Additionally, STMicroelectronics provides a power consumption calculator tool that can be used to estimate power consumption based on specific use cases and operating conditions.
