SPDC5WI - STMicroelectronics

Description: 5 W isolated DC-DC converter module 36V,200mA ,23.0 x 22.0 x 15.0 mm

Download SPDC5WI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

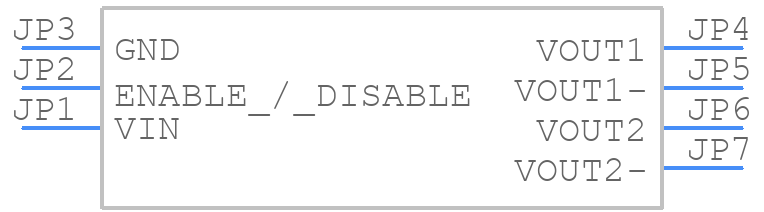

SPDC5WI - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
SPDC5WI - STMicroelectronics PCB footprint - Other - Other - 23.0 x 22.0 x 15.0 mm
click to zoom
3D Models
SPDC5WI - STMicroelectronics - 3D model - Other - 23.0 x 22.0 x 15.0 mm
click to zoom

SPDC5WI Details

  • Manufacturer Part Number:

    SPDC5WI

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Additional Feature:

    10V ADDITIONAL OUTPUT AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    IEC, UL

  • Efficiency (Main Output):

    80%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    10 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P7

  • Length:

    23.1 mm

  • Line Regulation-Max:

    2%

  • Load Regulation-Max:

    10%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.2 A

  • Output Voltage-Max:

    16.5 V

  • Output Voltage-Min:

    13.5 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,7LEAD,.7

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OVER VOLTAGE

  • Ripple Voltage (Main Out):

    0.0707 Vrms

  • Seated Height-Max:

    15.5 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    5 W

  • Trim/Adjustable Output:

    YES

  • Width:

    22.3 mm

SPDC5WI Frequently Asked Questions (FAQs)
