SPE-T1-M8MSM-180 footprint, schematic symbol and 3D model by Phoenix Contact

Symbol

click to zoom

PCB Footprints

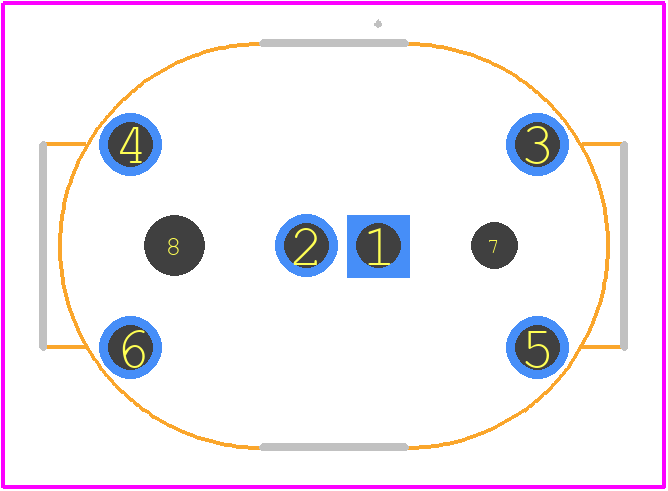

SPE-T1-M8MSM-180 - Phoenix Contact PCB footprint - Other - Other - SPE-T1-M8MSM-180-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SPE-T1-M8MSM-180
Part Number SPE-T1-M8MSM-180
Manufacturer Phoenix Contact
Pin Count 6
Part Category Connector
Package Category Other
Footprint Name Other - SPE-T1-M8MSM-180-4
Released Date Apr 10, 2025
Last Modified Date Apr 14, 2025 12:11 PM UTC
Pinout / Pin List Click Here (Member Only)

SPE-T1-M8MSM-180 Details

Manufacturer Part Number:
SPE-T1-M8MSM-180
Manufacturer:
Phoenix Contact

Trust Checks

Community Provided

System Verified

Community Approved

SPE-T1-M8MSM-180 Overview

Use the download button to access the SPE-T1-M8MSM-180 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SPE-T, or try a keyword search, such as SMPS Transformers

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
