SPEAR600-2 - STMicroelectronics

SPEAR600-2 Details

• Manufacturer Part Number:

  SPEAR600-2

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  BGA

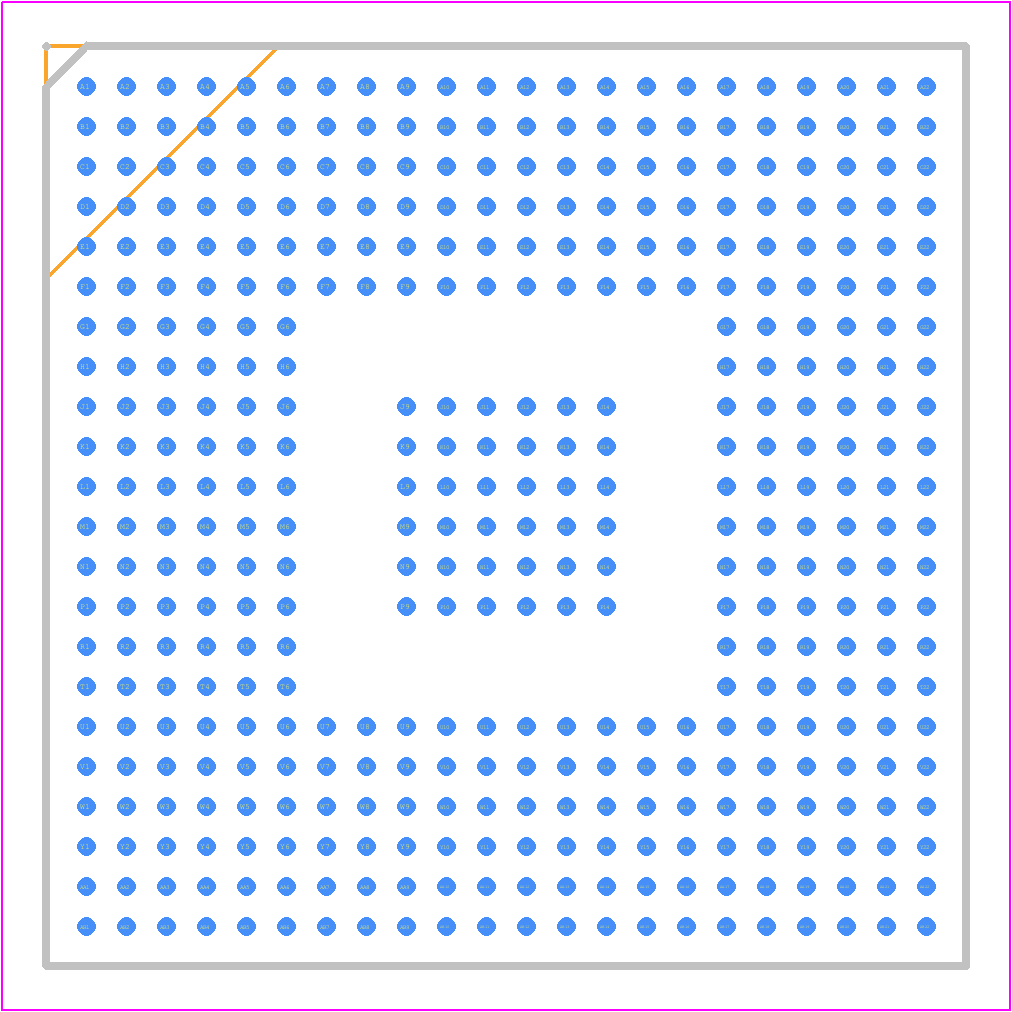

• Package Description:

  23 X 23 MM, 2.06 MM HEIGHT, 1 MM PITCH, ROHS COMPLIANT, PLASTIC, BGA-420

• Pin Count:

  420

• Country Of Origin:

  Taiwan

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.25

• Factory Lead Time:

  20 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  3

• Has ADC:

  YES

• Bit Size:

  32

• Clock Frequency-Max:

  30 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• JESD-30 Code:

  S-PBGA-B420

• JESD-609 Code:

  e2

• Length:

  23 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  84

• Number of Terminals:

  420

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Equivalence Code:

  BGA420,22X22,40

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• ROM Programmability:

  FLASH

• Seated Height-Max:

  2.06 mm

• Speed:

  30 MHz

• Supply Voltage-Max:

  1.1 V

• Supply Voltage-Min:

  0.95 V

• Supply Voltage-Nom:

  1 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Silver (Sn/Ag)

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  23 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
