SPF480D25 - CRYDOM

Description: Solid State Relay 15mA 15V DC-IN 25A 660V AC-OUT 4-Pin SIP

Download SPF480D25 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SPF480D25 - CRYDOM - PCB symbol
click to zoom
PCB Footprints

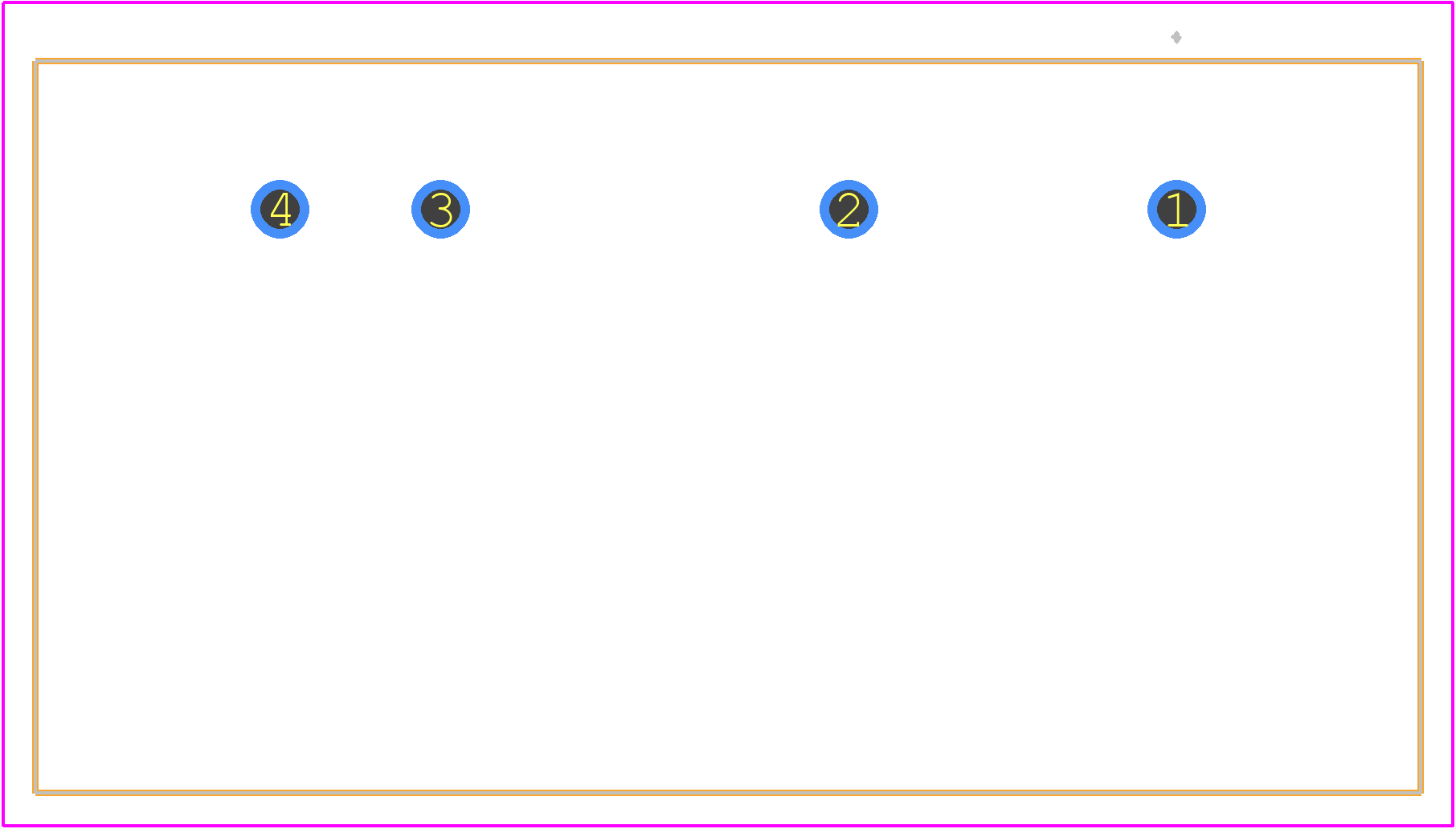

SPF480D25 - CRYDOM PCB footprint - Other - Other - SPF480D25-2
click to zoom
3D Models
SPF480D25 - CRYDOM - 3D model - Other - SPF480D25-2
click to zoom

SPF480D25 Details

  • Manufacturer Part Number:

    SPF480D25

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    SIP-4

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Crydom Inc

  • Additional Feature:

    UL APPROVED

  • Isolation Voltage-Max:

    4000 V

  • Number of Elements:

    1

  • On-State Current-Max:

    10 A

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    TRIGGER OUTPUT SSR

SPF480D25 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the SPF480D25 is -40°C to 85°C.
  • Yes, the SPF480D25 is designed for high-reliability applications and is built with high-quality components to ensure long-term reliability.
  • Yes, the SPF480D25 is designed to withstand high-vibration environments and is suitable for use in applications where vibration is a concern.
  • The typical response time for the SPF480D25 is 1-2 milliseconds, depending on the specific application and operating conditions.
  • Yes, the SPF480D25 meets or exceeds international safety standards, including UL, cUL, and CE.
