Part Image

SPG01R8HT4H-1 - Syntiant

Description: 0 kHz ~ 60 kHz Digital, PDM Microphone MEMS (Silicon) 1.65 V ~ 3.6 V Omnidirectional (-26dB ±1dB @ 94dB SPL) Solder Pads

Download SPG01R8HT4H-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

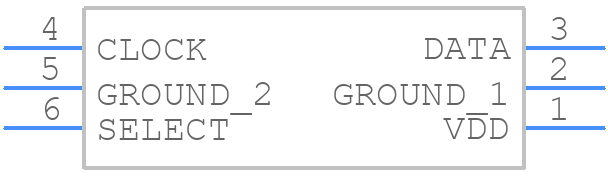

Symbol
SPG01R8HT4H-1 - Syntiant - PCB symbol
click to zoom
PCB Footprints
SPG01R8HT4H-1 - Syntiant PCB footprint - Other - Other - LGA Package (4mmx2mmx1.20mm)
click to zoom
3D Models
SPG01R8HT4H-1 - Syntiant - 3D model - Other - LGA Package (4mmx2mmx1.20mm)
click to zoom

SPG01R8HT4H-1 Details

  • Manufacturer Part Number:

    SPG01R8HT4H-1

  • Manufacturer:

    Syntiant Corporation

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SPG01R8HT4H-1 Overview

Use the download button to access the SPG01R8HT4H-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SPG01, or try a keyword search, such as Other Consumer ICs
