SPG18P4HM4H-1 - Syntiant

Description: 30 Hz ~ 10 kHz Digital, PDM Microphone MEMS (Silicon) 1.65 V ~ 3.6 V Omnidirectional (-26dB ±1dB) Solder Pads

Download SPG18P4HM4H-1 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SPG18P4HM4H-1 model

Email notifications will be applied after download.

Send part feedback

Symbol

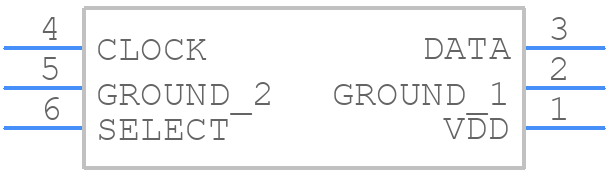

SPG18P4HM4H-1 - Syntiant - PCB symbol

PCB Footprints

SPG18P4HM4H-1 - Syntiant PCB footprint - Other - Other - SPG18P4HM4H-1-4

3D Models

SPG18P4HM4H-1 - Syntiant - 3D model - Other - SPG18P4HM4H-1-4

Datasheet Download Datasheet
Stock & Prices Price & Stock for SPG18P4HM4H-1
Part Number SPG18P4HM4H-1
Manufacturer Syntiant
Pin Count 6
Part Category Microphone
Package Category Other
Footprint Name Other - SPG18P4HM4H-1-4
Released Date Sep 23, 2025
Last Modified Date Sep 23, 2025 2:12 PM UTC
Pinout / Pin List Click Here (Member Only)

SPG18P4HM4H-1 Details

Manufacturer Part Number:
SPG18P4HM4H-1
Manufacturer:
Syntiant Corporation

Trust Checks

Community Provided

System Verified

Community Approved

SPG18P4HM4H-1 Overview

Use the download button to access the SPG18P4HM4H-1 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SPG18, or try a keyword search, such as Visible LEDs
