The recommended PCB layout and land pattern can be found in the Knowles Corporation's application note AN-SPK0641HT4H-1, which provides guidelines for optimal performance and minimizes noise and interference.
The SPK0641HT4H-1 has internal ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and installation to prevent damage. Additionally, consider adding external ESD protection components if the microphone is exposed to harsh environments.
A 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor, placed as close as possible to the microphone's power pins, is recommended for optimal power supply decoupling and noise reduction.
Optimizing acoustic performance requires consideration of the microphone's placement, orientation, and surrounding environment. Consult with Knowles Corporation's application engineers or acoustic experts to tailor the microphone's performance to your specific application.
The SPK0641HT4H-1 is designed to meet high reliability and durability standards, with a typical lifespan of 10 years or more in normal operating conditions. However, actual performance may vary depending on environmental factors, usage, and quality of assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SPK0641HT4H-1 Overview

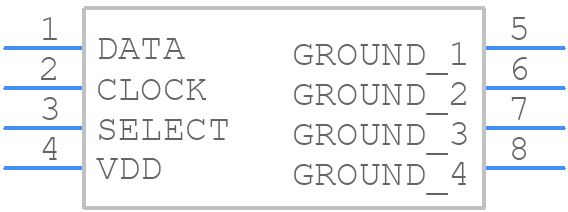

Use the download button to access the SPK0641HT4H-1 schematic symbol, PCB footprint, and 3D model.
