Part Image

SPM15-050-Q12-C - Murata Electronics

Description: Isolated Module DC DC Converter 1 Output 5V 3A 9V - 36V Input

Download SPM15-050-Q12-C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

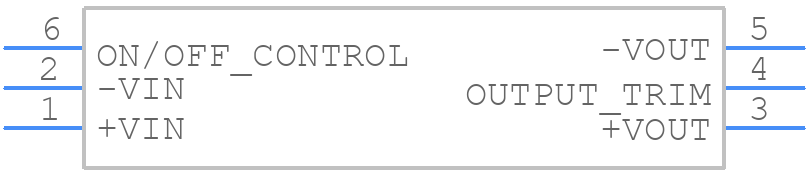

Symbol
SPM15-050-Q12-C - Murata Electronics - PCB symbol
click to zoom

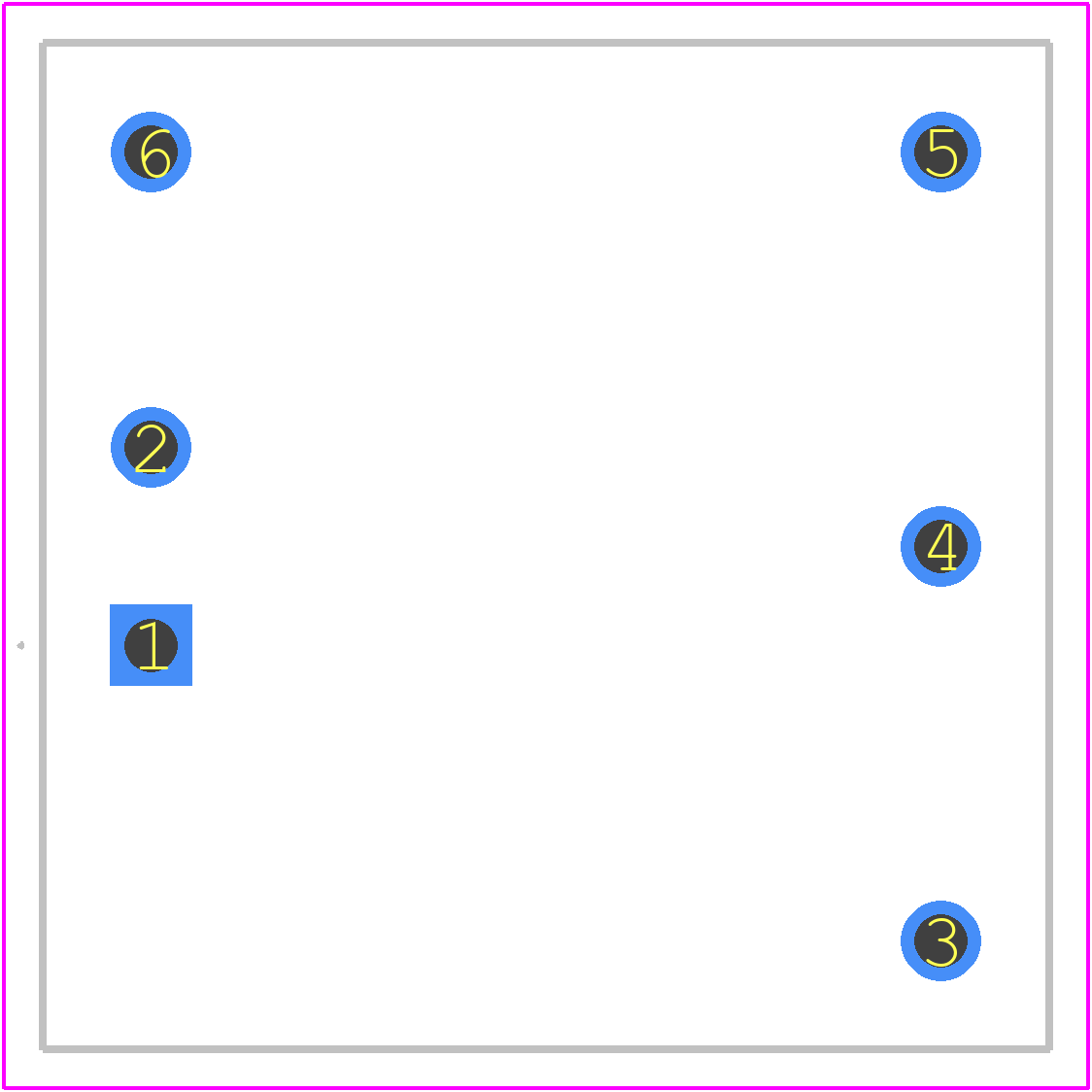

PCB Footprints
SPM15-050-Q12-C - Murata Electronics PCB footprint - Other - Other - SPM15-050-Q12-C-2
click to zoom
3D Models
SPM15-050-Q12-C - Murata Electronics - 3D model - Other - SPM15-050-Q12-C-2
click to zoom

SPM15-050-Q12-C Details

  • Manufacturer Part Number:

    SPM15-050-Q12-C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    36 Weeks

  • Date Of Intro:

    2020-06-05

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    3

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    EN; IEC; UL

  • Efficiency (Main Output):

    88%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-XDIP-P6

  • JESD-609 Code:

    e4

  • Length:

    25.4 mm

  • Line Regulation-Max:

    0.05%

  • Load Regulation-Max:

    0.1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DIP

  • Package Shape:

    SQUARE

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    10.91 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    15 W

  • Trim/Adjustable Output:

    NO

  • Width:

    25.4 mm

SPM15-050-Q12-C Frequently Asked Questions (FAQs)

  • Murata recommends a specific PCB layout and land pattern to ensure optimal performance and minimize parasitic effects. It's essential to follow the recommended layout and land pattern to achieve the specified performance. You can find the recommended layout and land pattern in the Murata application notes or by contacting their technical support.
  • The SPM15-050-Q12-C is designed to minimize high-frequency noise and EMI. It features a shielded construction and a ferrite core, which helps to reduce electromagnetic interference. Additionally, the device is designed to meet CISPR 25 Class 5 emissions standards. However, it's still important to follow proper PCB design and layout practices to minimize noise and EMI.
  • The SPM15-050-Q12-C is rated for operation from -40°C to +125°C. However, it's essential to note that the device's performance and reliability may be affected by extreme temperatures. It's recommended to operate the device within the specified temperature range to ensure optimal performance and reliability.
  • Yes, the SPM15-050-Q12-C is designed for high-reliability applications. It's built with high-quality materials and undergoes rigorous testing to ensure its performance and reliability. However, it's essential to follow proper design and manufacturing practices to ensure the device meets the required reliability standards.
  • Murata recommends storing the SPM15-050-Q12-C in a dry, cool place, away from direct sunlight and moisture. It's essential to handle the device by the package, avoiding touching the leads or core to prevent damage. Additionally, it's recommended to follow proper electrostatic discharge (ESD) precautions when handling the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SPM15-050-Q12-C Overview

Use the download button to access the SPM15-050-Q12-C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SPM15, or try a keyword search, such as Power Supply Modules

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
