SPOT-9DMI - OSI Optoelectronics

Description: Segmented Photodiode, Four Element Series, Metal Package

Download SPOT-9DMI Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SPOT-9DMI model

Email notifications will be applied after download.

Send part feedback

Symbol

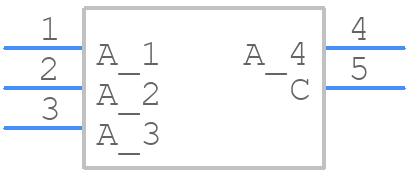

SPOT-9DMI - OSI Optoelectronics - PCB symbol

PCB Footprints

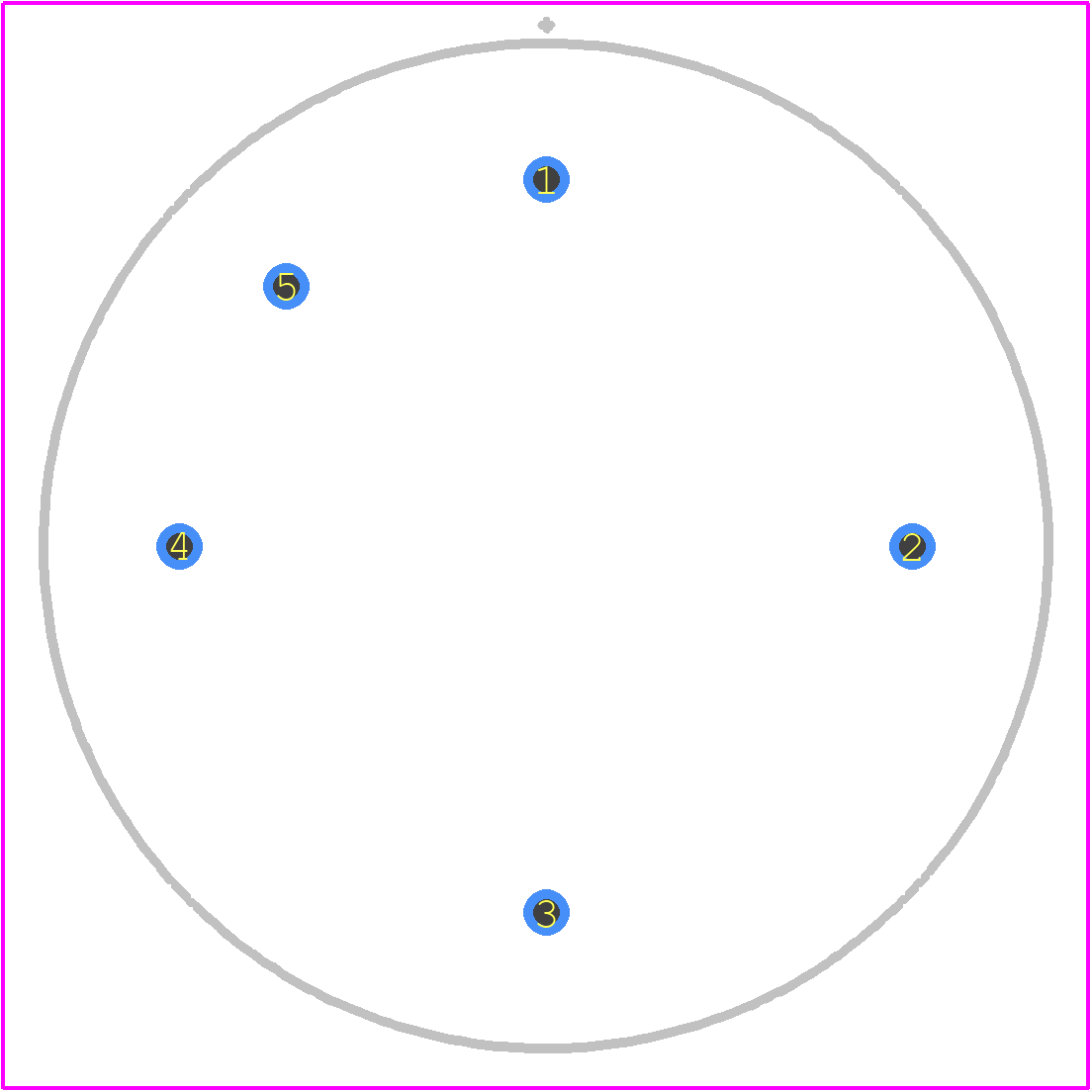

SPOT-9DMI - OSI Optoelectronics PCB footprint - Other - Other - SPOT-9DMI

3D Models

SPOT-9DMI - OSI Optoelectronics - 3D model - Other - SPOT-9DMI

Datasheet Download Datasheet
Stock & Prices Price & Stock for SPOT-9DMI
Part Number SPOT-9DMI
Manufacturer OSI Optoelectronics
Pin Count 5
Part Category Diode
Package Category Other
Footprint Name Other - SPOT-9DMI
Released Date Jan 27, 2024
Last Modified Date Jan 27, 2024 12:01 PM UTC
Pinout / Pin List Click Here (Member Only)

SPOT-9DMI Details

Manufacturer Part Number:
SPOT-9DMI
Rohs Code:
Yes
Part Life Cycle Code:
Contact Manufacturer
Package Description:
ROHS COMPLIANT, METAL PACKAGE-5
HTS Code:
8541.40.60.50
Manufacturer:
OSI Optoelectronics
Configuration:
COMMON CATHODE, 4 ELEMENTS
Mounting Feature:
THROUGH HOLE MOUNT
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
PIN PHOTODIODE
Shape:
ROUND
Size:
19.6 mm
Surface Mount:
NO

Trust Checks

Expert Contribution

System Verified

Community Approved

SPOT-9DMI Overview

Use the download button to access the SPOT-9DMI schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SPOT-, or try a keyword search, such as Photo Diodes
