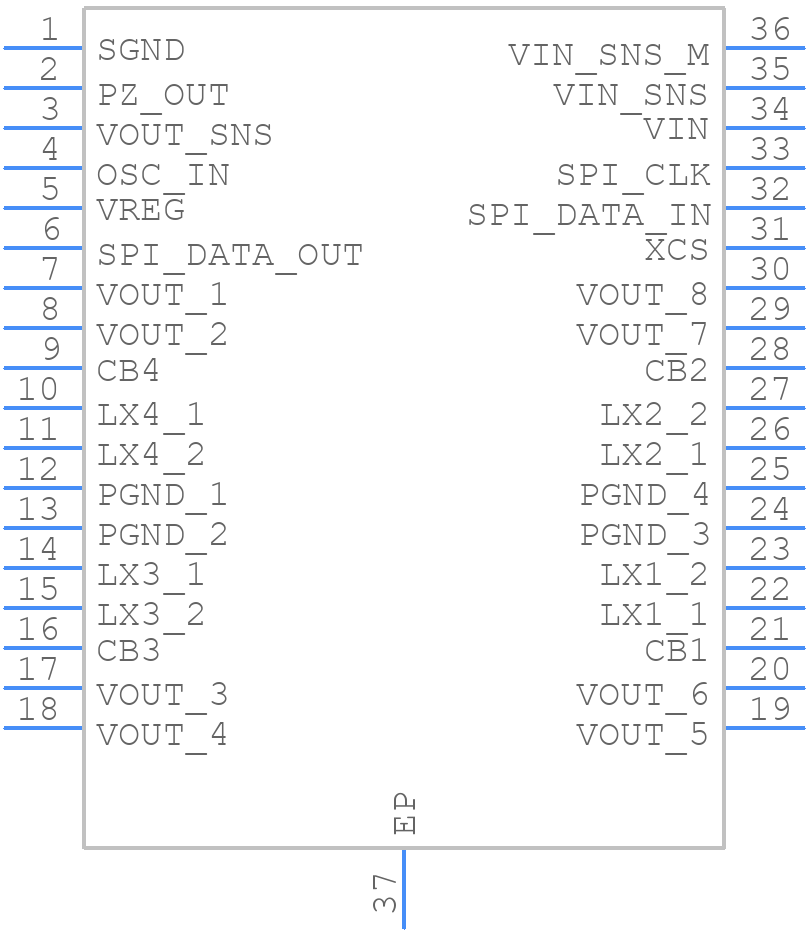

SPV1020 - STMicroelectronics

SPV1020 Details

• Manufacturer Part Number:

  SPV1020

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SSOP

• Package Description:

  SSOP-36

• Pin Count:

  36

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  STMicroelectronics

• YTEOL:

  0

• Additional Feature:

  OUTPUT VOLTAGE RANGE FROM 6.5 VOLT TO 40 VOLT

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  VOLTAGE-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  40 V

• Input Voltage-Min:

  6.5 V

• Input Voltage-Nom:

  36 V

• JESD-30 Code:

  R-PDSO-G36

• JESD-609 Code:

  e3

• Length:

  10.3 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  36

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  9 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HSSOP

• Package Equivalence Code:

  SSOP36,.41,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.47 mm

• Supply Voltage-Nom (Vsup):

  36 V

• Surface Mount:

  YES

• Switcher Configuration:

  BOOST

• Switching Frequency-Max:

  100 kHz

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7.5 mm
