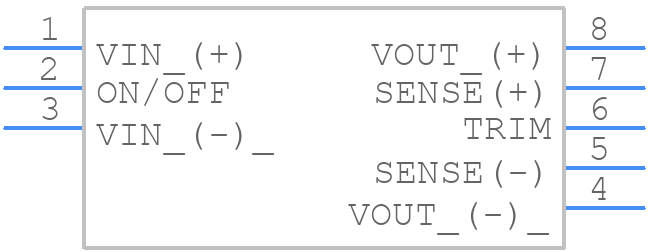

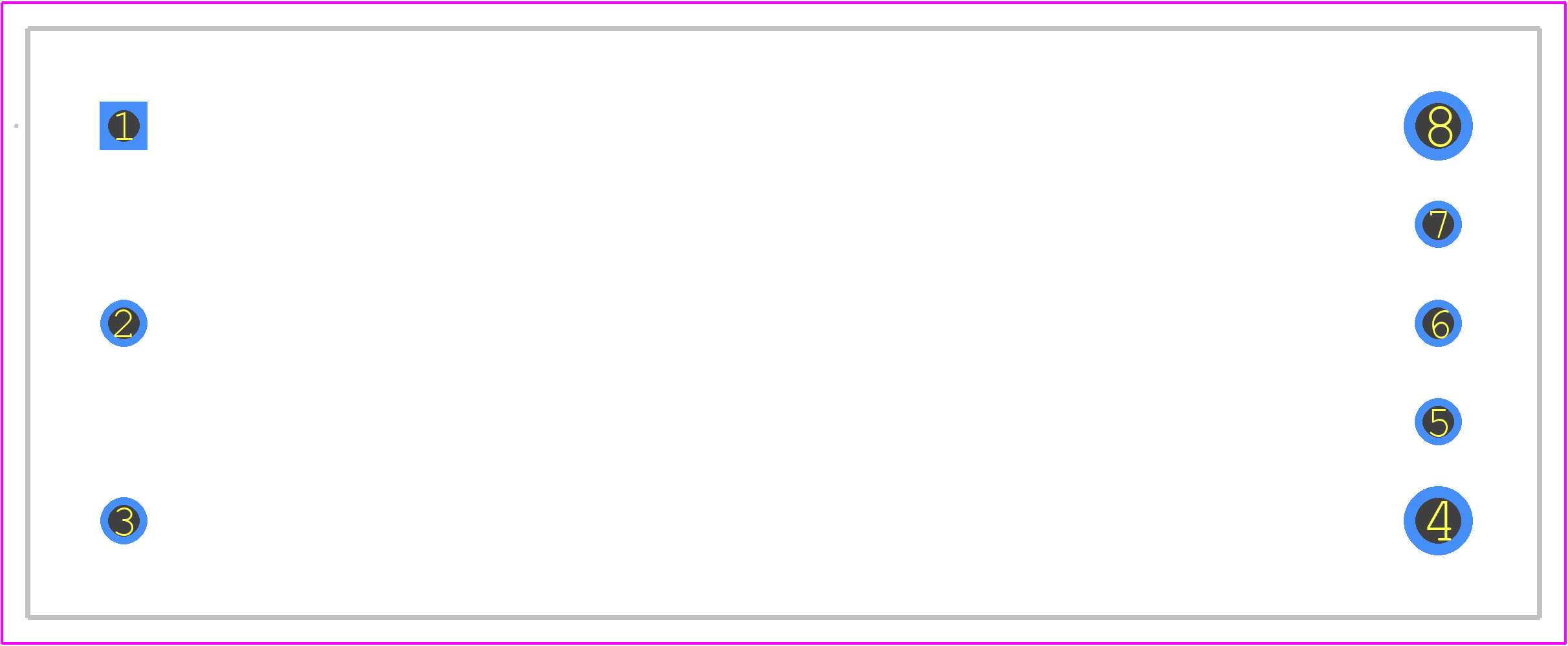

SQ24T08060-PBA0G - Bel Power Solutions

SQ24T08060-PBA0G Details

• Manufacturer Part Number:

  SQ24T08060-PBA0G

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  1/8 BRICK PACKAGE-8

• ECCN Code:

  EAR99

• Manufacturer:

  Bel Power Solutions

• YTEOL:

  0

• Additional Feature:

  REMOTE SHUTDOWN

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CSA, EN, FCC, IEC, UL

• Efficiency (Main Output):

  89%

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  18 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-XDMA-P8

• JESD-609 Code:

  e3

• Length:

  58.42 mm

• Line Regulation-Max:

  0.08333%

• Load Regulation-Max:

  0.08333%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  8 A

• Output Voltage-Max:

  6.6 V

• Output Voltage-Min:

  4.8 V

• Output Voltage-Nom:

  6 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DMA

• Package Equivalence Code:

  MODULE, 8LEAD,2

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Protections:

  INPUT UNDER VOLTAGE; OVER VOLTAGE; OVER CURRENT; OVER TEMPERATURE

• Qualification Status:

  Not Qualified

• Ripple Voltage (Main Out):

  0.02121 Vrms

• Seated Height-Max:

  8.94 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - with Nickel (Ni) barrier

• Terminal Form:

  PIN/PEG

• Terminal Pitch:

  3.81 mm

• Terminal Position:

  DUAL

• Total Power Output-Max:

  48 W

• Trim/Adjustable Output:

  YES

• Warm-up Time:

  0.004 s

• Width:

  22.76 mm
