SQJ952EP-T1_BE3 - Vishay

Description: MOSFETs DUAL N-CHANNEL 60-V (D-S) 175C MOSFET

Download SQJ952EP-T1_BE3 Model

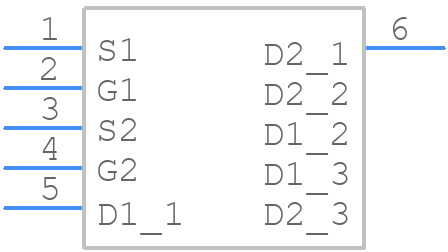

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SQJ952EP-T1_BE3 - Vishay PCB footprint - Other - Other - PowerPAK SO-8L DUAL
click to zoom
3D Models
SQJ952EP-T1_BE3 - Vishay  - 3D model - Other - PowerPAK SO-8L DUAL
click to zoom

SQJ952EP-T1_BE3 Details

  • Manufacturer Part Number:

    SQJ952EP-T1_BE3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SO-8L, 8 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    22 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    23 A

  • Drain-source On Resistance-Max:

    0.024 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    66 pF

  • JESD-30 Code:

    R-PSSO-G4

  • Number of Elements:

    2

  • Number of Terminals:

    4

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    93 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Max (toff):

    42 ns

  • Turn-on Time-Max (ton):

    20 ns

SQJ952EP-T1_BE3 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the SQJ952EP-T1_BE3 is a standard 1206 package with a pad size of 1.3 mm x 1.3 mm and a spacing of 0.5 mm between pads.
  • To prevent damage during soldering, it's recommended to use a soldering iron with a temperature of 260°C (500°F) or less, and to avoid applying excessive force or pressure to the component. Additionally, use a solder with a low melting point and a flux that is compatible with the component's materials.
  • The maximum operating temperature range for the SQJ952EP-T1_BE3 is -55°C to 150°C, with a storage temperature range of -55°C to 180°C.
  • Yes, the SQJ952EP-T1_BE3 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements for lead-free and halogen-free materials.
  • The SQJ952EP-T1_BE3 should be stored in a dry, cool place, away from direct sunlight and moisture. It's recommended to store the components in their original packaging or in a sealed bag to prevent damage from electrostatic discharge (ESD).

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SQJ952EP-T1_BE3 Overview

Use the download button to access the SQJ952EP-T1_BE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SQJ95, or try a keyword search, such as Power Field-Effect Transistors
