SQM120N04-1m7_GE3 - Vishay

Description: MOSFET 40V 120A 375W AEC-Q101 Qualified

Download SQM120N04-1m7_GE3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SQM120N04-1m7_GE3 - Vishay - PCB symbol
click to zoom
PCB Footprints

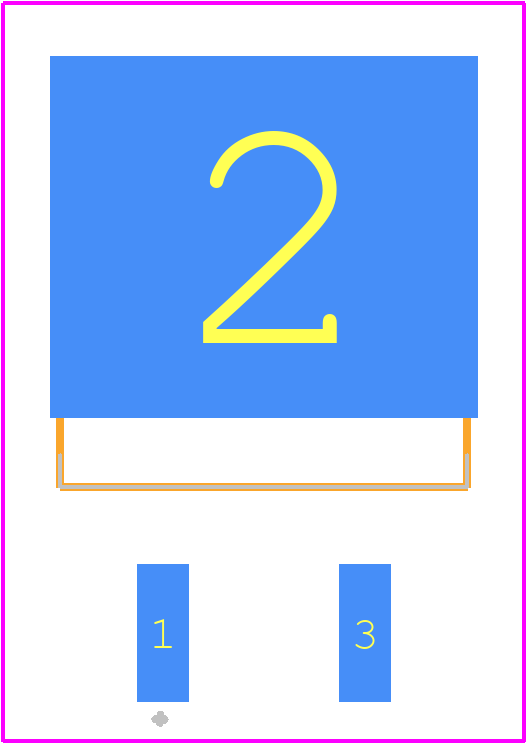

SQM120N04-1m7_GE3 - Vishay PCB footprint - Other - Other - D2PAK: 3-Lead
click to zoom
3D Models
SQM120N04-1m7_GE3 - Vishay - 3D model - Other - D2PAK: 3-Lead
click to zoom

SQM120N04-1m7_GE3 Details

  • Manufacturer Part Number:

    SQM120N04-1M7_GE3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, TO-263, D2PAK-3/2

  • ECCN Code:

    EAR99

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Avalanche Energy Rating (Eas):

    361 mJ

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    120 A

  • Drain-source On Resistance-Max:

    0.0017 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    TO-263AB

  • JESD-30 Code:

    R-PSSO-G2

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    480 A

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Transistor Element Material:

    SILICON

SQM120N04-1m7_GE3 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for SQM120N04-1M7_GE3 is a 5x6 mm pad with a 3.5 mm x 3.5 mm thermal pad in the center, with a solder mask defined pad (SMDP) and a non-solder mask defined (NSMD) thermal pad.
  • To ensure reliable soldering, use a soldering iron with a temperature of 260°C to 280°C, and a solder with a melting point of 217°C to 220°C. Apply a small amount of solder paste to the PCB pad, and use a reflow oven or a hot air soldering station to solder the component.
  • The maximum allowed voltage derating for SQM120N04-1M7_GE3 is 80% of the maximum rated voltage, which is 120V. Therefore, the maximum allowed voltage derating is 96V.
  • The power dissipation of SQM120N04-1M7_GE3 can be calculated using the formula: Pd = (Vds x Ids) + (Vgs x Igs), where Vds is the drain-to-source voltage, Ids is the drain-to-source current, Vgs is the gate-to-source voltage, and Igs is the gate-to-source current.
  • The thermal resistance of SQM120N04-1M7_GE3 is RthJA = 40°C/W (junction-to-ambient) and RthJC = 2.5°C/W (junction-to-case).
