SQM120N10-09_GE3 - Vishay

Description: MOSFET N-CH 100V 120A TO263

Download SQM120N10-09_GE3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

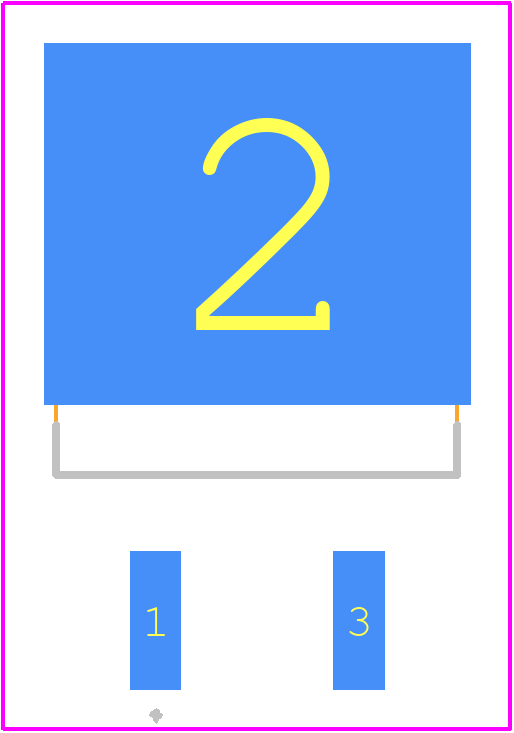

SQM120N10-09_GE3 - Vishay PCB footprint - Other - Other - TO-263 (D2PAK)_5.08 H
click to zoom

SQM120N10-09_GE3 Details

  • Manufacturer Part Number:

    SQM120N10-09_GE3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, TO-263, 3 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    3

  • Avalanche Energy Rating (Eas):

    266 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    120 A

  • Drain-source On Resistance-Max:

    0.0095 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    TO-263AB

  • JESD-30 Code:

    R-PSSO-G2

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    480 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Transistor Element Material:

    SILICON

SQM120N10-09_GE3 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for SQM120N10-09_GE3 is a TO-247-3L package with a minimum pad size of 4.5mm x 3.5mm and a thermal pad size of 2.5mm x 2.5mm.
  • To ensure reliability in high-temperature applications, it is recommended to follow Vishay's guidelines for thermal management, including proper heat sinking, thermal interface materials, and derating the device's power dissipation according to the ambient temperature.
  • Yes, SQM120N10-09_GE3 can be used in switching applications, but it is essential to ensure that the device is operated within its safe operating area (SOA) and that the switching frequency is within the recommended range to avoid overheating and reduce electromagnetic interference (EMI).
  • The maximum allowed voltage slew rate for SQM120N10-09_GE3 is 10V/ns, exceeding which may cause the device to malfunction or fail.
  • To protect SQM120N10-09_GE3 from ESD, it is recommended to follow standard ESD handling procedures, including using ESD-safe workstations, wrist straps, and packaging materials, and ensuring that the device is properly grounded during handling and assembly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SQM120N10-09_GE3 Overview

Use the download button to access the SQM120N10-09_GE3 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SQM12, or try a keyword search, such as Power Field-Effect Transistors
