Part Image

SQPW2010RJ - TE Connectivity

Description: Body Features: Lead Type Axial-Leaded | Configuration Features: Number of Resistors 1 | Dimensions: Passive Component Dimensions 60 x 14 x 13.5 MM | Electrical Characteristics: Resistance Class Up to 1kΩ | Resistance Value 10 OHM | Passive Component Tolerance 5 PCT | Power Rating 20 WATT | Packaging Features: Packaging Method Loose Piece - Box | Product Type Features: Resistor Type Power Resistor | Element Type Wire Wound | Termination Features: Number of Terminations 2 | Termination Area Base Material Cop

Download SQPW2010RJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SQPW2010RJ - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

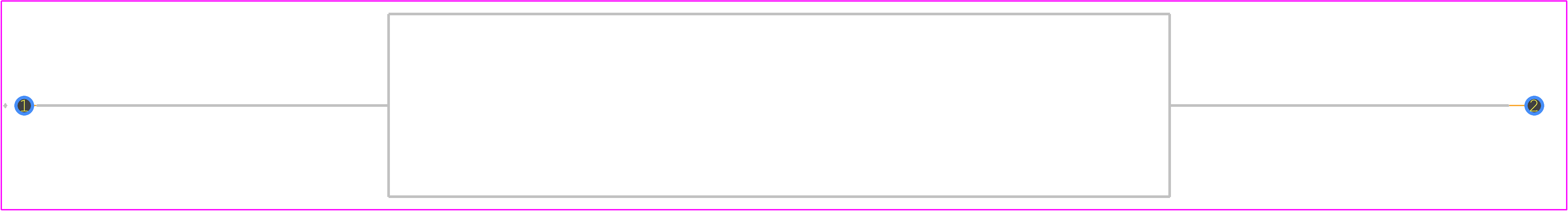

SQPW2010RJ - TE Connectivity PCB footprint - Other - Other - SQPW2010RJ-5
click to zoom
3D Models
SQPW2010RJ - TE Connectivity - 3D model - Other - SQPW2010RJ-5
click to zoom

SQPW2010RJ Details

  • Manufacturer Part Number:

    SQPW2010RJ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.80

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    10

  • Construction:

    Rectangular

  • Lead Diameter:

    0.8 mm

  • Lead Length:

    35 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    275 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    13.5 mm

  • Package Length:

    60 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Axial

  • Package Width:

    14 mm

  • Packing Method:

    BULK, BOX

  • Physical Dimension:

    60mm x 14mm x 13.5mm

  • Rated Power Dissipation (P):

    20 W

  • Resistance:

    10 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    WIRE WOUND

  • Temperature Coefficient:

    300 ppm/°C

  • Terminal Shape:

    WIRE

  • Tolerance:

    5%

  • Working Voltage:

    1000 V

SQPW2010RJ Frequently Asked Questions (FAQs)

  • TE Connectivity provides a recommended PCB layout and land pattern in their application note AN-1043, which can be found on their website. It's essential to follow this layout to ensure proper soldering and to prevent thermal issues.
  • To ensure reliable connections and prevent damage, it's recommended to follow the recommended mating and unmating sequence, apply a gentle and consistent force, and avoid twisting or bending the connector. Additionally, using a connector saver or guide can help prevent damage to the contacts.
  • While the datasheet specifies an operating temperature range of -40°C to 105°C, it's essential to note that the connector's performance may degrade at extreme temperatures. It's recommended to derate the connector's current rating at high temperatures to ensure reliable operation.
  • Yes, SQPW2010RJ is designed to withstand high-vibration and harsh environments. However, it's recommended to follow TE Connectivity's guidelines for vibration testing and to ensure that the connector is properly secured to the PCB and mated with the correct amount of force.
  • The recommended torque specification for the SQPW2010RJ screw terminals is 0.5 Nm to 1.5 Nm. Over-torquing can damage the terminals, while under-torquing can lead to poor connections.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SQPW2010RJ Overview

Use the download button to access the SQPW2010RJ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SQPW2, or try a keyword search, such as Fixed Resistors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
