SQT-106-01-LM-S-RA footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

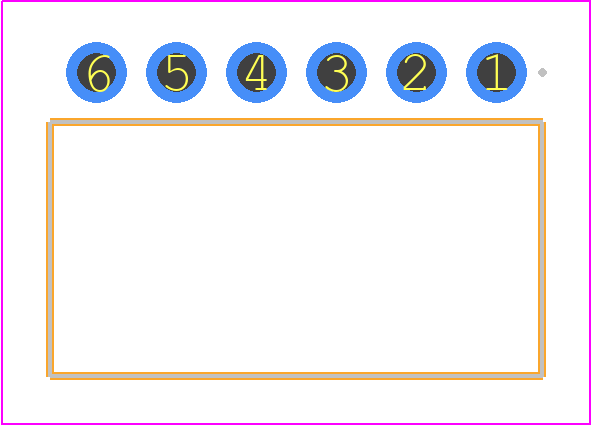

SQT-106-01-LM-S-RA - SAMTEC PCB footprint - Other - Other - SQT-106-01-XXX-S-RA

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SQT-106-01-LM-S-RA
Part Number SQT-106-01-LM-S-RA
Manufacturer SAMTEC
Pin Count 6
Part Category Connector
Package Category Other
Footprint Name Other - SQT-106-01-XXX-S-RA
Released Date Jun 22, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SQT-106-01-LM-S-RA Details

Manufacturer Part Number:
SQT-106-01-LM-S-RA
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
9
Body Breadth:
0.078 inch
Body Depth:
0.25 inch
Body Length:
0.479 inch
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
PHOSPHOR BRONZE
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.078 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
1
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
Plating Thickness:
10u inch
Rated Current (Signal):
5.1 A
Reference Standard:
UL
Terminal Length:
0.09 inch
Terminal Pitch:
2 mm
Termination Type:
SOLDER
Total Number of Contacts:
6
UL Flammability Code:
94V-0

SQT-106-01-LM-S-RA Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the SQT-106-01-LM-S-RA connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw lock engagement to prevent connector detachment.
The maximum operating temperature for the SQT-106-01-LM-S-RA connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
The SQT-106-01-LM-S-RA connector is not sealed and is not intended for use in wet or humid environments. If exposure to moisture is a concern, consider using a sealed or waterproof connector or applying a conformal coating to the connector.
The recommended mating cycle for the SQT-106-01-LM-S-RA connector is 500-1000 cycles according to Samtec's datasheet. However, this may vary depending on the specific application and environmental conditions.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SQT-106-01-LM-S-RA Overview

Use the download button to access the SQT-106-01-LM-S-RA schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SQT-1, or try a keyword search, such as Headers and Edge Type Connectors
