SR215C104KAA - Kyocera AVX

Description: SR21 X7R ceramic capacitor,100nF 50V

Download SR215C104KAA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SR215C104KAA - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

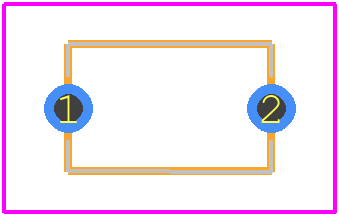

SR215C104KAA - Kyocera AVX PCB footprint - Other - Other - SR215C104KAA-1
click to zoom
3D Models
SR215C104KAA - Kyocera AVX - 3D model - Other - SR215C104KAA-1
click to zoom

SR215C104KAA Details

  • Manufacturer Part Number:

    SR215C104KAA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.60

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    0

  • Capacitance:

    0.1 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    7.62 mm

  • JESD-609 Code:

    e3

  • Length:

    5.08 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    50 V

  • Size Code:

    2012

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    X7R

  • Temperature Coefficient:

    15% ppm/°C

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Pitch:

    5.08 mm

  • Terminal Shape:

    WIRE

  • Width:

    3.175 mm

SR215C104KAA Frequently Asked Questions (FAQs)

  • The recommended land pattern for SR215C104KAA is a rectangular pad with a size of 2.5mm x 1.25mm, with a non-solder mask defined (NSMD) pad shape.
  • Yes, SR215C104KAA is rated for operation up to 125°C, making it suitable for high-temperature applications. However, the capacitance and ESR may vary with temperature, so it's essential to consider these factors in the design.
  • The SR215C104KAA has a voltage derating curve that indicates the maximum allowed voltage at different temperatures. It's essential to follow this curve to ensure the capacitor operates within its specified ratings.
  • Yes, SR215C104KAA is compatible with lead-free soldering processes, including RoHS and WEEE compliance.
  • The typical ESL of SR215C104KAA is around 1.5nH, which is relatively low and suitable for high-frequency applications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SR215C104KAA Overview

Use the download button to access the SR215C104KAA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SR215, or try a keyword search, such as Ceramic Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
