SR42I010-L - Antenova

Description: Antennas 863-870 & 902-928MHz Left Antenna

Download SR42I010-L Model

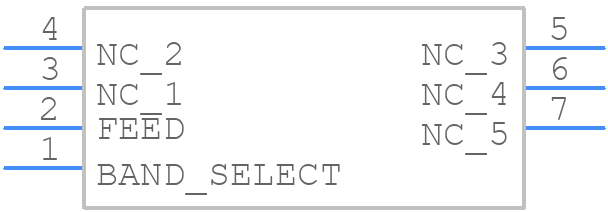

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SR42I010-L - Antenova PCB footprint - Other - Other - SR42I010-L-2
click to zoom
3D Models
SR42I010-L - Antenova  - 3D model - Other - SR42I010-L-2
click to zoom

SR42I010-L Details

  • Manufacturer Part Number:

    SR42I010-L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Manufacturer:

    Antenova M2M

  • Additional Feature:

    ANTENNA GAIN IS -4 DBI

  • Application:

    ISM/LORA/SIGFOX

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    7

  • Omnidirectional:

    NO

  • Operating Frequency-Max:

    928 MHz

  • Operating Frequency-Min:

    863 MHz

  • Operating Temperature-Max:

    140 °C

  • Operating Temperature-Min:

    -40 °C

  • Polarization:

    LINEAR

  • RF/Microwave Device Type:

    MOBILE STATION ANTENNA

  • Surface Mount:

    YES

  • VSWR-Max:

    3.1

SR42I010-L Frequently Asked Questions (FAQs)

  • A good grounding scheme is essential for optimal antenna performance. It is recommended to have a solid ground plane under the antenna and to connect the antenna's ground pin to the PCB's ground plane. A minimum of 4-6 vias should be used to connect the antenna's ground pin to the ground plane.
  • The antenna's performance can be affected by the PCB material and thickness. For example, a thicker PCB can reduce the antenna's efficiency, while a PCB with a high dielectric constant can affect the antenna's resonant frequency. It is recommended to use a PCB material with a low dielectric constant and a thickness of 0.8-1.6 mm for optimal performance.
  • The SR42I010-L antenna is designed to handle up to 20W of continuous power. However, it is recommended to derate the power to 10W or less for optimal performance and to prevent overheating. High-power transmissions can cause the antenna to overheat, which can affect its performance and lifespan.
  • The antenna's performance can be affected by extreme environmental conditions. For example, high temperatures can cause the antenna's resonant frequency to shift, while high humidity can affect the antenna's impedance. It is recommended to operate the antenna within a temperature range of -40°C to 85°C and a humidity range of 5-95% RH.
  • The recommended installation orientation of the antenna is with the antenna's main beam perpendicular to the PCB. The antenna should be positioned at least 10 mm away from any metal components or edges on the PCB to prevent detuning and ensure optimal performance.
