Antenova provides a recommended PCB layout and design guidelines in their application notes, which include keeping the antenna away from metal components, using a solid ground plane, and minimizing the use of vias and thermal pads.
The SR42I010-R is designed to operate in a wide range of environmental conditions, including temperatures from -40°C to +85°C and humidity up to 90%. However, it's recommended to consult Antenova's environmental testing reports for specific details.
The SR42I010-R has a maximum power rating of 20 dBm, and it's designed to handle high-power transmissions without degradation. However, it's recommended to consult Antenova's power handling guidelines for specific applications.
The SR42I010-R has a directional radiation pattern, with a peak gain of 2.5 dBi. The radiation pattern is dependent on the PCB design and surrounding environment, and Antenova provides simulation data and application notes to help optimize the design.
The typical lead time for the SR42I010-R is 6-8 weeks, and the MOQ is 1000 pieces. Alternative or equivalent components may be available from other manufacturers, but it's recommended to consult Antenova's sales team or authorized distributors for specific information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SR42I010-R Overview

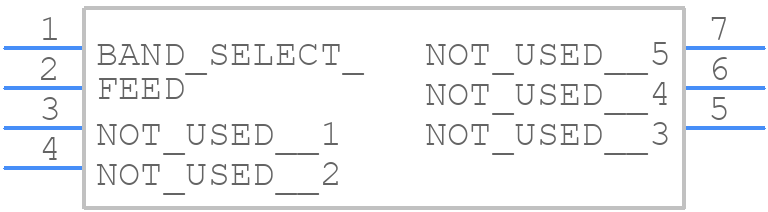

Use the download button to access the SR42I010-R schematic symbol, PCB footprint, and 3D model.
