- Part Number SR4L002
- Manufacturer Antenova
- Pin Count 16
- Part Category Antenna
- Package Category Other
- Footprint Name Other - SR4L002
- Released Date Aug 2, 2018
- Last Modified Date Jan 31, 2024 1:09 PM UTC
- Pinout / Pin List Click Here (Member Only)
SR4L002 Details
-
Manufacturer Part Number:
SR4L002
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Contact Manufacturer
-
Manufacturer:
Antenova M2M
-
Additional Feature:
IT CAN ALSO OPERATE AT 824-960, 1710-2170, 2300-2400 AND 2500-2690 MHZ, ANTENNA GAIN IS -1.5 DBI
-
Application:
4G; FEMTO; PICO BASE STATIONS; PORTABLE; GSM850, 900; DCS1800; PCS1900; WCDMA2100; LTE 700, B7, B40
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Mounting Feature:
SURFACE MOUNT
-
Omnidirectional:
NO
SR4L002 Frequently Asked Questions (FAQs)
-
Antenova provides a recommended PCB layout and design guidelines document that can be requested from their sales team or technical support. It's essential to follow these guidelines to ensure optimal performance and minimize detuning effects.
-
The SR4L002 antenna is designed to operate in a variety of environments, but its performance may be affected by nearby metal objects or other RF components. Antenova recommends testing the antenna in the specific application environment to ensure optimal performance.
-
The SR4L002 antenna is designed to handle up to 2W of continuous power. Exceeding this power rating may cause damage to the antenna or affect its performance.
-
The SR4L002 antenna is designed to operate in a variety of environmental conditions, including high temperatures up to 85°C and humidity up to 95%. However, it's essential to follow Antenova's guidelines for environmental testing and certification.
-
The SR4L002 antenna is designed to comply with various regulatory requirements, including CE, FCC, and IC. Antenova provides documentation and support to help customers ensure compliance with these regulations.
Trust Checks
Expert Contribution
System Verified
Community Approved
SR4L002 Overview

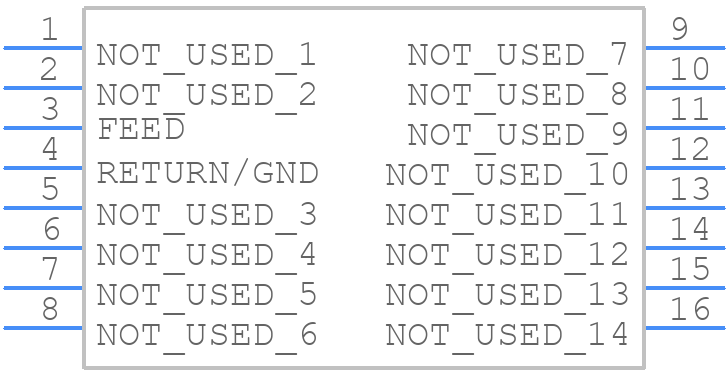

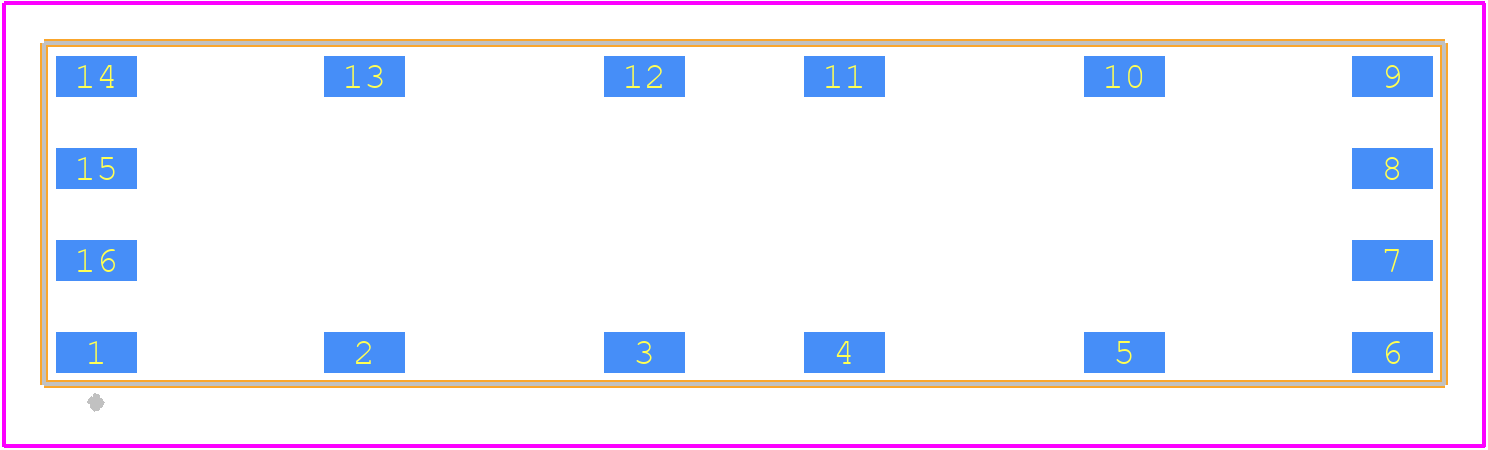

Use the download button to access the SR4L002 schematic symbol, PCB footprint, and 3D model.
