- Part Number SR4L034-L
- Manufacturer Antenova
- Pin Count 9
- Part Category Antenna
- Package Category Other
- Footprint Name Other - SR4L034-L-3
- Released Date Dec 11, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SR4L034-L Details
-
Manufacturer Part Number:
SR4L034-L
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Contact Manufacturer
-
Manufacturer:
Antenova M2M
-
Additional Feature:
IT CAN ALSO OPERATE AT 1710-2170, 2300-2400, 2500-2690 MHZ, ANTENNA GAIN IS -1.1 DBI
-
Application:
3G/4G/CDMA/DCS/EDGE/FEMTO CELL/GSM/GPRS/HSPDA/IMT/PCS/PICO STATION/LTE/UMTS/WCDMA/WIRELESS
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Operating Frequency-Max:
960 MHz
-
Operating Frequency-Min:
698 MHz
-
Operating Temperature-Max:
140 °C
SR4L034-L Frequently Asked Questions (FAQs)
-
Antenova recommends a solid ground plane on the PCB, with a minimum of 30mm x 30mm clearance around the antenna. A via-stitched ground plane is also recommended to ensure good RF grounding.
-
The SR4L034-L is designed to operate in a variety of environments, but its performance may be affected by nearby metal enclosures or RF shields. It's recommended to test the antenna in the specific application environment to ensure optimal performance.
-
The SR4L034-L is designed to handle up to 20W of continuous power, but it's recommended to derate the power to 10W or less for optimal performance and to prevent overheating.
-
The SR4L034-L is designed to operate in a temperature range of -40°C to +85°C and humidity up to 95% RH. However, it's recommended to test the antenna in the specific application environment to ensure optimal performance.
-
Antenova recommends using a 50Ω coaxial cable with a U.FL or SMA connector to connect the antenna to the module. The cable length should be kept as short as possible to minimize signal loss.
Trust Checks
Expert Contribution
System Verified
Community Approved
SR4L034-L Overview

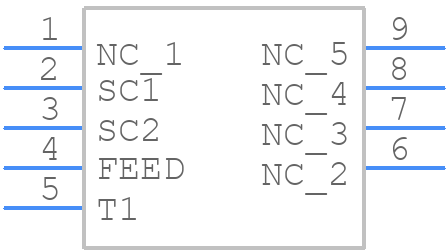

Use the download button to access the SR4L034-L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SR4L0,
or try a keyword search, such as RF/Microwave Antennas
