SR4L034-R - Antenova

Description: Antennas Inversa Right LTE Antenna

Download SR4L034-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

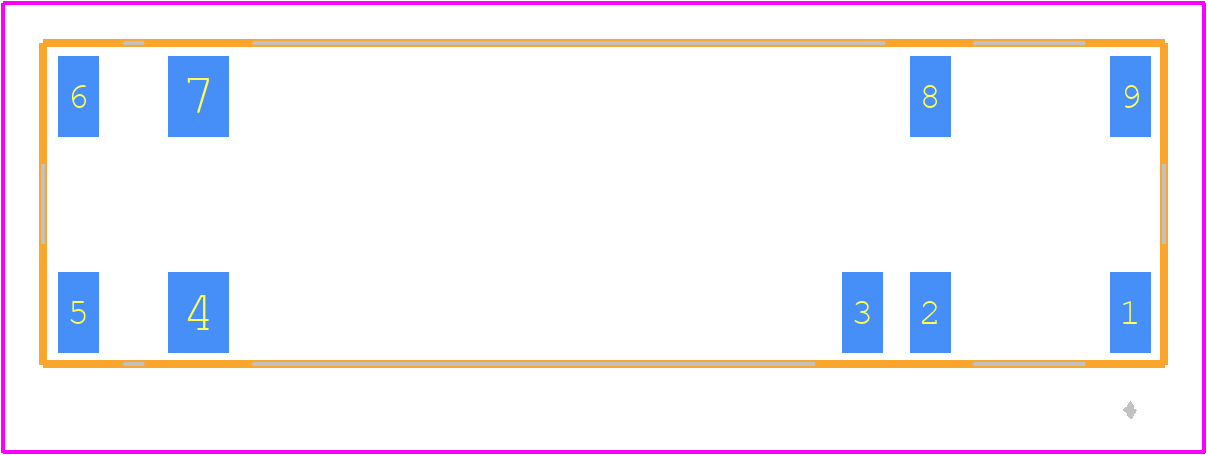

SR4L034-R - Antenova PCB footprint - Other - Other - SR4L034-R-1
click to zoom
3D Models
SR4L034-R - Antenova  - 3D model - Other - SR4L034-R-1
click to zoom

SR4L034-R Details

  • Manufacturer Part Number:

    SR4L034-R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Manufacturer:

    Antenova M2M

  • Additional Feature:

    IT CAN ALSO OPERATE AT 1710-2170, 2300-2400, 2500-2690 MHZ, ANTENNA GAIN IS -1.1 DBI

  • Application:

    3G/4G/CDMA/DCS/EDGE/FEMTO CELL/GSM/GPRS/HSPDA/IMT/PCS/PICO STATION/LTE/UMTS/WCDMA/WIRELESS

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Operating Frequency-Max:

    960 MHz

  • Operating Frequency-Min:

    698 MHz

  • Operating Temperature-Max:

    140 °C

  • Operating Temperature-Min:

    -40 °C

  • Polarization:

    LINEAR

  • RF/Microwave Device Type:

    MOBILE STATION ANTENNA

  • VSWR-Max:

    2.8

SR4L034-R Frequently Asked Questions (FAQs)

  • A good grounding scheme is essential for optimal antenna performance. It is recommended to have a solid ground plane under the antenna and to connect the antenna's ground pin to the ground plane. The PCB layout should also be designed to minimize noise and interference.
  • The antenna's performance can be affected by the PCB material and thickness. For example, a thicker PCB can reduce the antenna's efficiency, while a PCB with high dielectric constant can affect the antenna's resonant frequency. It is recommended to use a PCB material with a low dielectric constant and a thickness of 1.6 mm or less.
  • The SR4L034-R antenna is designed to handle up to 20 dBm (100 mW) of transmit power. However, it is recommended to derate the power to 15 dBm (30 mW) or less to ensure reliable operation and to prevent overheating.
  • The antenna's performance can be affected by extreme temperatures and humidity. The antenna is designed to operate in temperatures ranging from -40°C to 85°C, and humidity up to 90%. However, it is recommended to operate the antenna within a temperature range of 0°C to 60°C for optimal performance.
  • The recommended method for connecting the antenna to the PCB is through a low-loss, 50-ohm coaxial cable with a secure connection, such as a U.FL or SMA connector. Using a connector or cable assembly can affect the antenna's performance, and it is recommended to keep the cable length as short as possible to minimize signal loss.
