SRDA05-4BTG - LITTELFUSE

Description: ESD Suppressors / TVS Diodes 4CH 30A 5V 8pF Lightning Protection

Download SRDA05-4BTG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

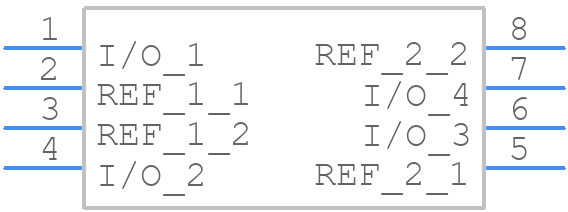

SRDA05-4BTG - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints
SRDA05-4BTG - LITTELFUSE PCB footprint - Small Outline Packages - Small Outline Packages - SOIC 8 MS-012
click to zoom
3D Models
SRDA05-4BTG - LITTELFUSE - 3D model - Small Outline Packages - SOIC 8 MS-012
click to zoom

SRDA05-4BTG Details

  • Manufacturer Part Number:

    SRDA05-4BTG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    7

  • Additional Feature:

    LOW CAPACITANCE

  • Breakdown Voltage-Min:

    6 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JEDEC-95 Code:

    MS-012AA

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Non-rep Peak Rev Power Dis-Max:

    600 W

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Rep Pk Reverse Voltage-Max:

    5 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

SRDA05-4BTG Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SRDA05-4BTG is -40°C to 125°C, as per the manufacturer's guidelines.
  • While SRDA05-4BTG is suitable for high-frequency applications, its performance may degrade above 1 GHz. It's recommended to consult with Littelfuse Inc or a qualified engineer for specific application guidance.
  • To ensure reliability, follow the recommended operating temperature range (-40°C to 125°C) and consider derating the device according to the manufacturer's guidelines. Additionally, ensure proper thermal management and consider using thermal interface materials if necessary.
  • The maximum surge current rating for SRDA05-4BTG is 100 A, as specified in the datasheet. However, it's essential to consider the device's thermal and electrical characteristics when designing for surge current applications.
  • Yes, SRDA05-4BTG is suitable for automotive applications, as it meets the requirements for automotive-grade components. However, ensure compliance with relevant automotive standards and regulations, such as AEC-Q101.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SRDA05-4BTG Overview

Use the download button to access the SRDA05-4BTG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SRDA0, or try a keyword search, such as Transient Suppressors
