SRDA3.3-4BTG - LITTELFUSE

Description: LITTELFUSE - SRDA3.3-4BTG. - DIODE, TVS ARRAY, BI-DIRECTIONAL, 3.3V,

Download SRDA3.3-4BTG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

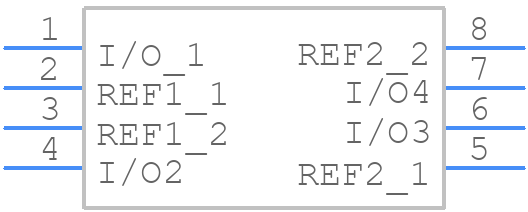

Symbol
SRDA3.3-4BTG - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints
SRDA3.3-4BTG - LITTELFUSE PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8
click to zoom
3D Models
SRDA3.3-4BTG - LITTELFUSE - 3D model - Small Outline Packages - SOIC-8
click to zoom

SRDA3.3-4BTG Details

  • Manufacturer Part Number:

    SRDA3.3-4BTG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    6.91

  • Additional Feature:

    LOW CAPACITANCE

  • Breakdown Voltage-Min:

    3.5 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JEDEC-95 Code:

    MS-012AA

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Non-rep Peak Rev Power Dis-Max:

    600 W

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    IEC-61000-4-2, 4-4, 4-5

  • Rep Pk Reverse Voltage-Max:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

SRDA3.3-4BTG Frequently Asked Questions (FAQs)

  • The recommended footprint and land pattern for SRDA3.3-4BTG can be found in the Littelfuse application note AN9313, which provides detailed guidelines for PCB layout and assembly.
  • To ensure proper soldering and avoid solder bridging, follow the recommended soldering profile and use a solder paste with a melting point above 217°C (423°F). Additionally, use a solder mask to define the solderable areas and prevent bridging.
  • The SRDA3.3-4BTG is rated for operation from -40°C to 125°C (-40°F to 257°F). However, the device's performance and reliability may degrade if operated outside the recommended temperature range.
  • Yes, the SRDA3.3-4BTG is suitable for high-reliability and automotive applications. It meets the requirements of AEC-Q101 and is designed to withstand the harsh environments and operating conditions found in these applications.
  • Handle SRDA3.3-4BTG devices with ESD-protective equipment and follow proper ESD handling procedures. Store the devices in their original packaging or in a conductive bag to prevent ESD damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SRDA3.3-4BTG Overview

Use the download button to access the SRDA3.3-4BTG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SRDA3, or try a keyword search, such as Transient Suppressors
