SRJ101010022 - Summit Electronics

Description: RJ45 1x1 port 1G low profile 1000Base-T LED Green / Yellow THT 90° Angle (Right) Through-hole 350uH Min @100KHz,0.1V,8mA DC -40~+85°C

Download SRJ101010022 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SRJ101010022 model

Email notifications will be applied after download.

Send part feedback

Symbol

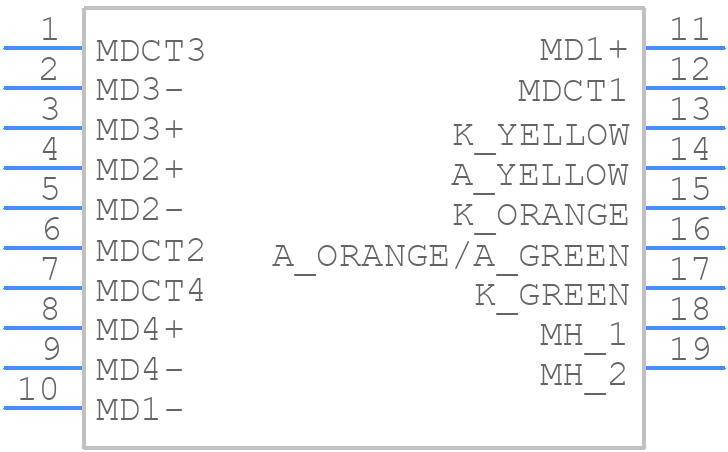

SRJ101010022 - Summit Electronics - PCB symbol

PCB Footprints

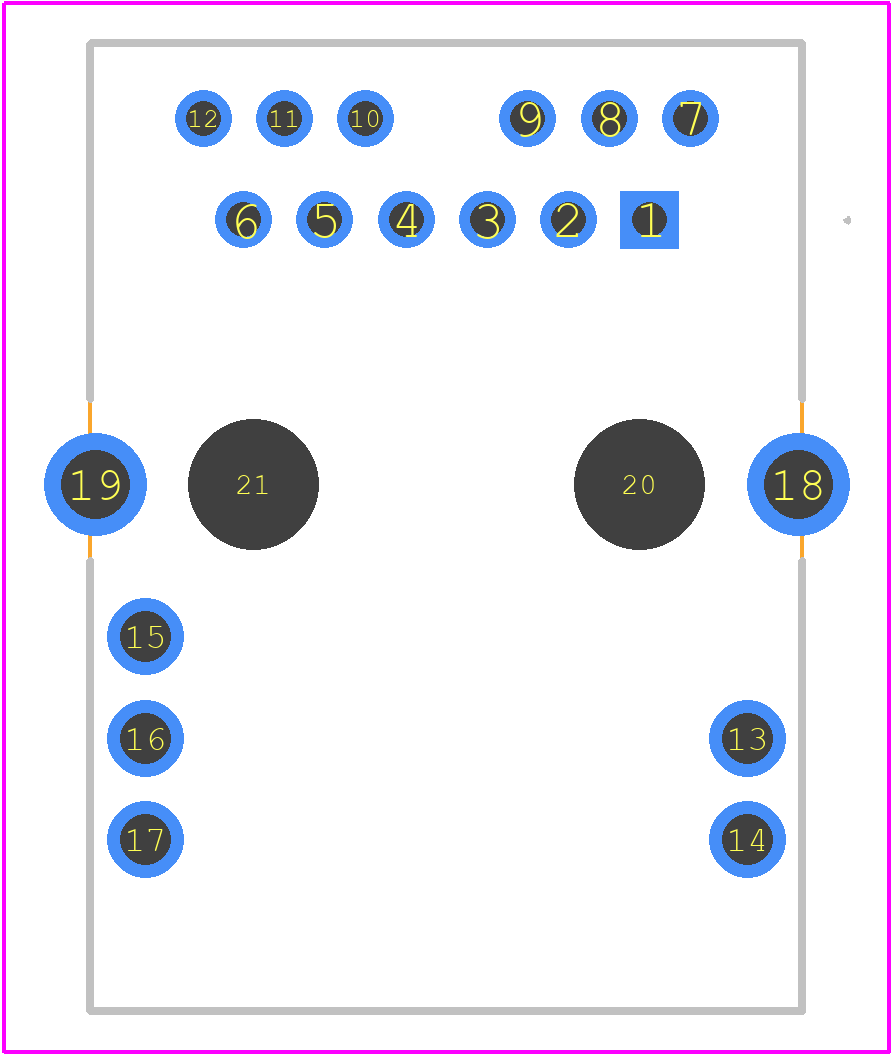

SRJ101010022 - Summit Electronics PCB footprint - Other - Other - SRJ101010022-4

3D Models

SRJ101010022 - Summit Electronics - 3D model - Other - SRJ101010022-4

Datasheet Download Datasheet
Stock & Prices Price & Stock for SRJ101010022
Part Number SRJ101010022
Manufacturer Summit Electronics
Pin Count 19
Part Category Connector
Package Category Other
Footprint Name Other - SRJ101010022-4
Released Date May 23, 2026
Last Modified Date May 23, 2026 6:40 AM UTC
Pinout / Pin List Click Here (Member Only)

SRJ101010022 Details
