SRJ101011010 - Summit Electronics

Description: RJ45 Ethernet Connector 90° Angle (Right) 100/1000 Base-T Orange & Green/Yellow LED Through-hole 350uH 0.5~100HMz -40°C to +85°C

Download SRJ101011010 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SRJ101011010 model

Email notifications will be applied after download.

Send part feedback

Symbol

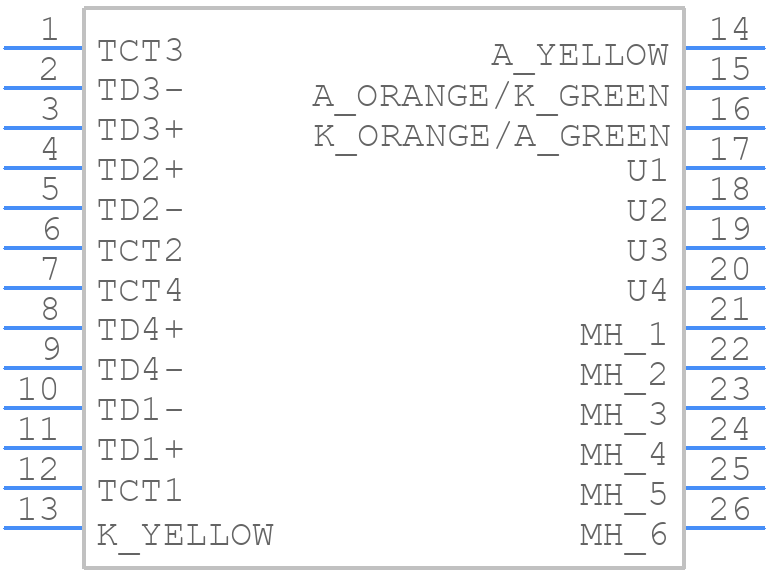

SRJ101011010 - Summit Electronics - PCB symbol

PCB Footprints

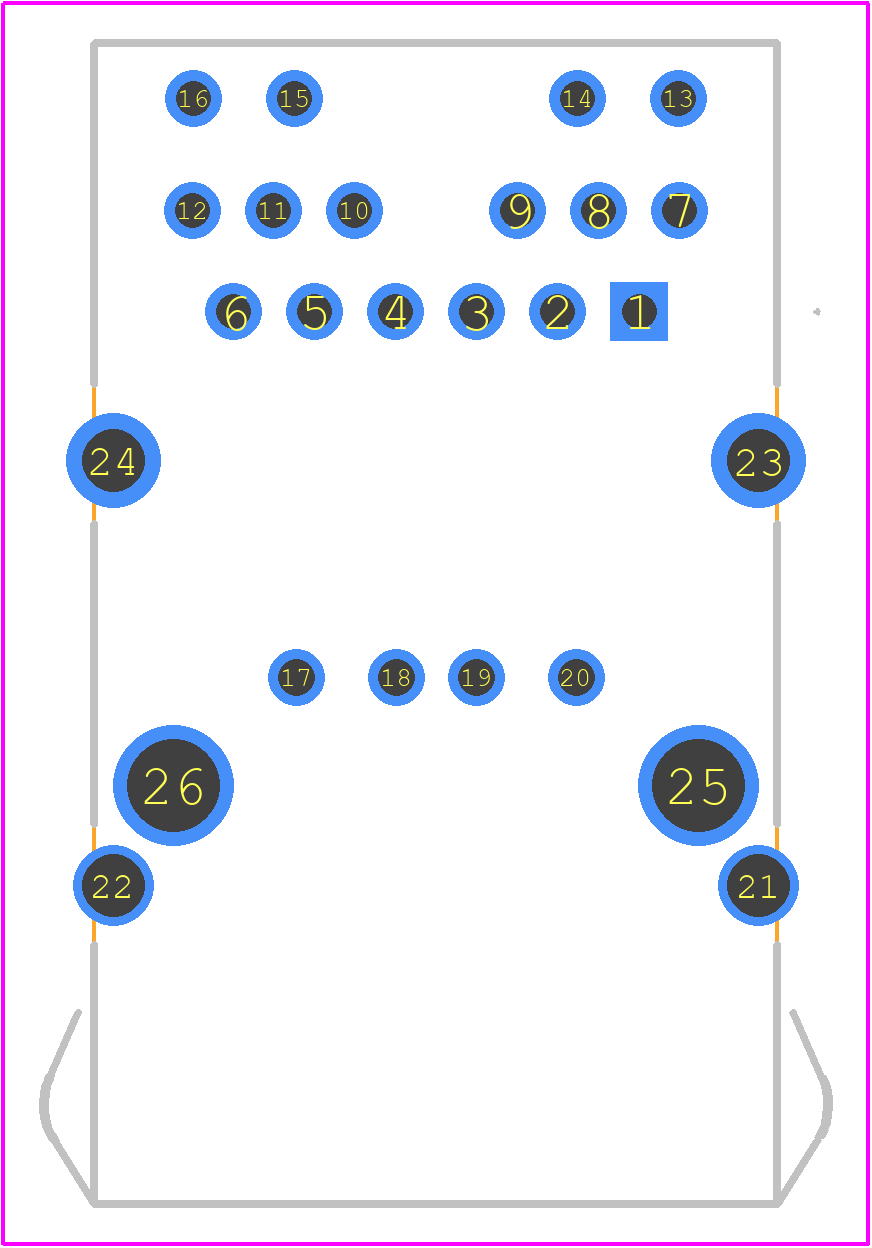

SRJ101011010 - Summit Electronics PCB footprint - Other - Other - SRJ101011010-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for SRJ101011010
Part Number SRJ101011010
Manufacturer Summit Electronics
Pin Count 26
Part Category Connector
Package Category Other
Footprint Name Other - SRJ101011010-2
Released Date May 25, 2026
Last Modified Date Jun 10, 2026 5:51 PM UTC
Pinout / Pin List Click Here (Member Only)

SRJ101011010 Details

Manufacturer Part Number:
SRJ101011010
Manufacturer:
(Of No Interest)

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SRJ101011010 Overview

Use the download button to access the SRJ101011010 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SRJ10, or try a keyword search, such as Rotary Switches
