Part Image

SRK2000A - STMicroelectronics

Description: STMicroelectronics SRK2000A, Dual PWM Secondary Side Controller, -1 (Source) A, 3.5 (Sink) A, 500 kHz, 8-Pin SOIC

Download SRK2000A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

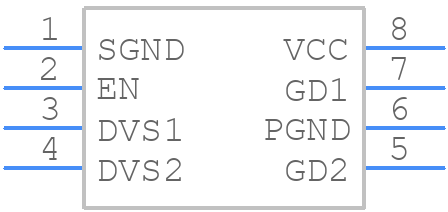

SRK2000A - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
SRK2000A - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8_a
click to zoom
3D Models
SRK2000A - STMicroelectronics - 3D model - Small Outline Packages - SO-8_a
click to zoom

SRK2000A Details

  • Manufacturer Part Number:

    SRK2000A

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    RESONANT CONTROL

  • Input Voltage-Max:

    32 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    500 kHz

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

SRK2000A Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 4-layer PCB with a solid ground plane, and to keep the SRK2000A away from other components that may generate noise. Additionally, use a common mode choke and a shielded cable for the USB interface to reduce EMI.
  • You can implement overcurrent protection by using an external current sense resistor and a comparator to monitor the current. The comparator can then trigger a shutdown signal to the SRK2000A if the current exceeds a certain threshold.
  • STMicroelectronics recommends using a heat sink with a thermal resistance of less than 10°C/W, and applying a thermal interface material (TIM) to the SRK2000A. Additionally, ensure good airflow around the device and avoid blocking the airflow with other components.
  • You can configure the SRK2000A for a specific USB device class by programming the device's registers using the I2C interface. The specific registers and values will depend on the device class and the requirements of your application.
  • The maximum cable length supported by the SRK2000A is 3 meters for a standard USB cable. However, this can be extended up to 5 meters using an active repeater or a USB hub.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SRK2000A Overview

Use the download button to access the SRK2000A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SRK20, or try a keyword search, such as Switching Regulator or Controllers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
