SRN8040-4R7Y - Bourns

Description: Bourns, SRN8040, SMD Shielded Wire-wound SMD Inductor with a Ferrite Core, 4.7 μH ±30% Semi-Shielded 4.1A Idc Q:13

Download SRN8040-4R7Y Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SRN8040-4R7Y - Bourns - PCB symbol
click to zoom
PCB Footprints

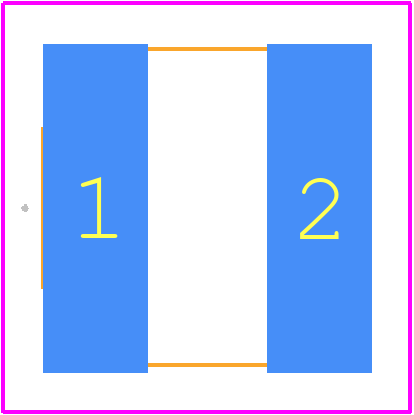

SRN8040-4R7Y - Bourns PCB footprint - Other - Other - SRN8040-4R7Y-2
click to zoom
3D Models
SRN8040-4R7Y - Bourns - 3D model - Other - SRN8040-4R7Y-2
click to zoom

SRN8040-4R7Y Details

  • Manufacturer Part Number:

    SRN8040-4R7Y

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6.7

  • Case/Size Code:

    3231

  • Construction:

    Semi Shielded

  • Core Material:

    FERRITE

  • DC Resistance:

    0.024 Ω

  • Inductance-Nom (L):

    4.7 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e1

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    4 mm

  • Package Length:

    8.15 mm

  • Package Style:

    SMT

  • Package Width:

    7.9 mm

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Rated Current-Max:

    4.1 A

  • Self Resonance Frequency:

    28 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    ONE SURFACE

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    30%

SRN8040-4R7Y Frequently Asked Questions (FAQs)

  • A symmetrical layout with a solid ground plane and minimal signal trace length is recommended. Keep the inductor away from high-frequency signals and avoid routing signals under the inductor.
  • The SRN8040-4R7Y is designed to minimize high-frequency noise and EMI. Its shielded construction and magnetic field cancellation help reduce radiation and susceptibility to external interference.
  • The SRN8040-4R7Y is rated for operation from -40°C to +125°C, making it suitable for a wide range of applications, including automotive and industrial systems.
  • Yes, the SRN8040-4R7Y is designed and manufactured to meet the requirements of high-reliability applications, including AEC-Q200 and IATF 16949 standards.
  • The SRN8040-4R7Y offers high power handling and efficiency due to its optimized design and materials. It is suitable for high-current applications and can help reduce energy losses in power supplies and DC-DC converters.
