Bourns recommends a symmetrical PCB layout with a solid ground plane, and keeping the component away from high-frequency noise sources. A minimum of 2 oz copper thickness is recommended for the PCB.
The SRP1038WA-470M is designed to provide high-frequency noise attenuation and EMI filtering. It has a built-in X-capacitor that helps to reduce electromagnetic interference and radio-frequency interference.
The SRP1038WA-470M has an operating temperature range of -40°C to +125°C, making it suitable for a wide range of industrial and automotive applications.
Yes, the SRP1038WA-470M is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
Bourns recommends storing the SRP1038WA-470M in a dry, cool place, away from direct sunlight and moisture. Handling should be done with anti-static precautions to prevent damage to the component.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SRP1038WA-470M Overview

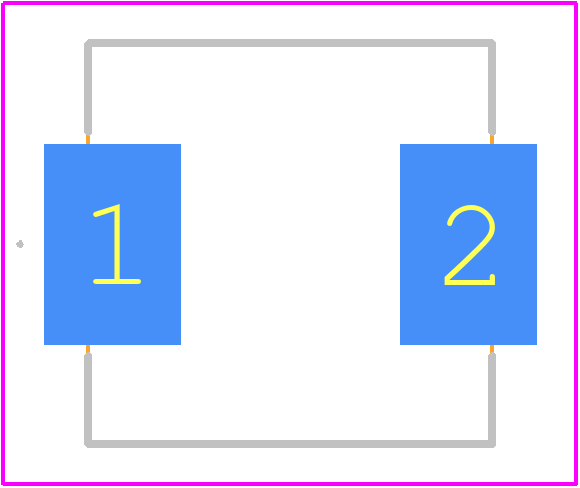

Use the download button to access the SRP1038WA-470M schematic symbol, PCB footprint, and 3D model.
