The recommended land pattern for SRP1038WA-4R7M can be found in the Bourns Application Note S-8151, which provides guidelines for surface mount assembly and layout considerations.
Yes, SRP1038WA-4R7M is compatible with lead-free soldering. Bourns Inc. recommends following the IPC J-STD-020D standard for lead-free soldering.
The maximum operating temperature range for SRP1038WA-4R7M is -40°C to +125°C, as specified in the datasheet. However, it's recommended to derate the component's power rating at higher temperatures to ensure reliable operation.
Yes, SRP1038WA-4R7M is designed to withstand high-vibration environments. Bourns Inc. recommends following the IEC 60068-2-6 standard for vibration testing and ensuring proper mounting and soldering to prevent component failure.
Yes, SRP1038WA-4R7M is RoHS and REACH compliant, as stated in the Bourns Inc. datasheet and compliance documentation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SRP1038WA-4R7M Overview

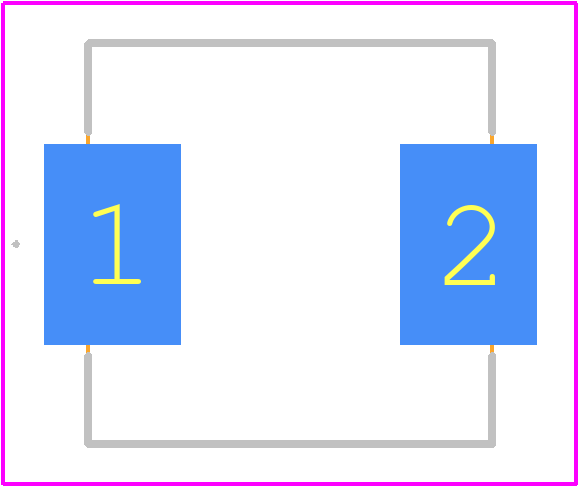

Use the download button to access the SRP1038WA-4R7M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SRP10,
or try a keyword search, such as Fixed Inductors
