The recommended land pattern for the SRP1038WA-6R8M can be found in the Bourns Application Note S-8151, which provides guidelines for PCB layout and land pattern design.
While the SRP1038WA-6R8M is rated for operation up to 125°C, it's essential to consider the derating curves and thermal management strategies to ensure reliable operation in high-temperature environments.
Follow the recommended soldering and rework guidelines in the Bourns Soldering and Rework Guide (S-8153) to prevent damage to the component and ensure reliable joints.
The ESR of the SRP1038WA-6R8M is not explicitly stated in the datasheet, but it can be estimated based on the component's impedance and capacitance values. Contact Bourns technical support for more information.
Yes, the SRP1038WA-6R8M is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SRP1038WA-6R8M Overview

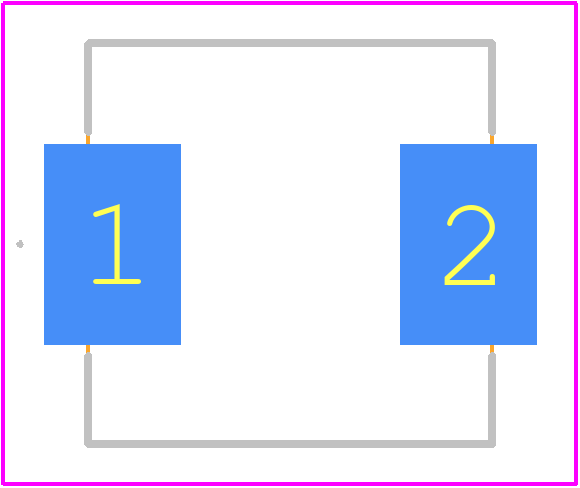

Use the download button to access the SRP1038WA-6R8M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SRP10,
or try a keyword search, such as Fixed Inductors
