SRP1238A-1R5M footprint, schematic symbol and 3D model by Bourns

Symbol

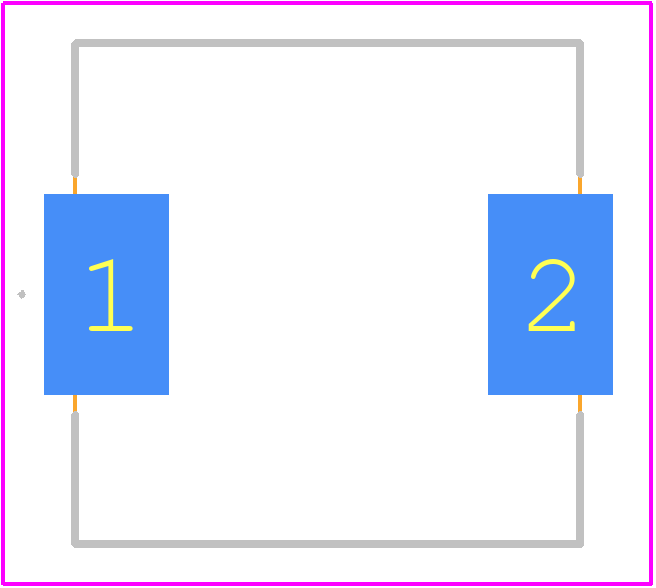

PCB Footprints

3D Models

SRP1238A-1R5M Details

The recommended land pattern for SRP1238A-1R5M is a rectangular pad with a size of 1.3 mm x 0.8 mm, with a non-solder mask defined (NSMD) pad shape. This is to ensure proper soldering and to prevent solder bridging.
While the SRP1238A-1R5M is rated for operation up to 125°C, it's essential to consider the derating curve and ensure that the component does not exceed its maximum operating temperature. Additionally, the user should evaluate the component's performance and reliability under high-temperature conditions.
To prevent damage during PCB assembly, handle the SRP1238A-1R5M by the edges, avoid touching the component's leads or body, and use an anti-static wrist strap or mat. Also, ensure that the PCB is properly cleaned and dried before assembly to prevent moisture damage.
The recommended soldering profile for SRP1238A-1R5M is a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C. It's essential to follow the recommended soldering profile to prevent damage to the component.
While the SRP1238A-1R5M is a robust component, it's essential to evaluate its performance and reliability under high-vibration or high-shock conditions. The user should consider the component's mechanical stress limits and ensure that it is properly secured to the PCB to prevent damage or detachment.

Community Provided

System Verified

Community Approved

Use the download button to access the SRP1238A-1R5M schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SRP12, or try a keyword search, such as Fixed Inductors
