SRP1250-7R8M Frequently Asked Questions (FAQs)

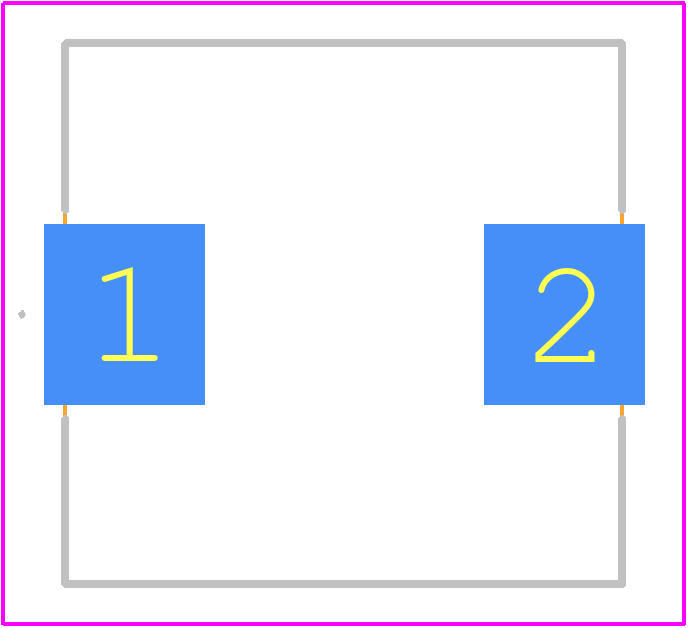

• What is the recommended land pattern for the SRP1250-7R8M?
  The recommended land pattern for the SRP1250-7R8M can be found in the Bourns Application Note S-8151, which provides a detailed guide for PCB layout and land pattern design.
• How do I ensure the SRP1250-7R8M is properly soldered to the PCB?
  To ensure proper soldering, follow the recommended soldering profile and temperature guidelines provided in the Bourns Soldering Guide. Additionally, use a solder with a melting point below 260°C to prevent damage to the component.
• What is the maximum operating temperature range for the SRP1250-7R8M?
  The SRP1250-7R8M has an operating temperature range of -40°C to +125°C, but it's recommended to derate the component's power rating at higher temperatures to ensure reliable operation.
• Can I use the SRP1250-7R8M in a high-vibration environment?
  Yes, the SRP1250-7R8M is designed to withstand high-vibration environments. However, it's recommended to follow the recommended mounting and soldering guidelines to ensure the component remains securely attached to the PCB.
• How do I handle ESD protection when working with the SRP1250-7R8M?
  To prevent ESD damage, handle the SRP1250-7R8M with ESD-protective equipment, such as wrist straps and mats, and follow proper ESD-handling procedures.
