SRP1265C-100M - Bourns

Description: Inductor Power Shielded Wirewound 10uH 20% 100KHz 20Q-Factor Metal Alloy Powder 12A 0.018Ohm DCR T/R

Download SRP1265C-100M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SRP1265C-100M - Bourns - PCB symbol
click to zoom

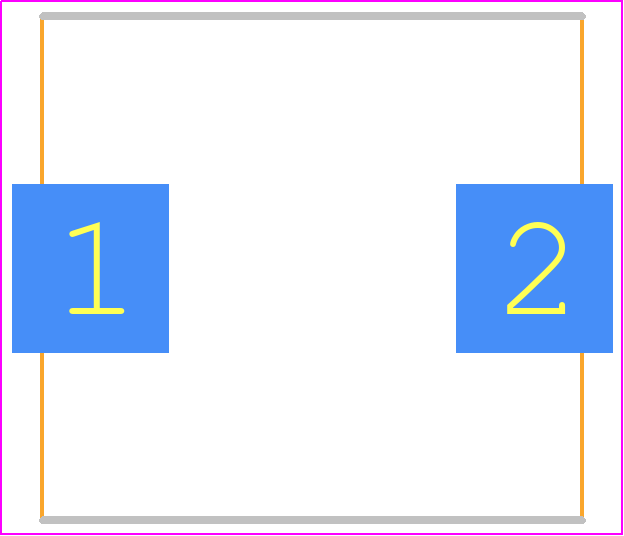

PCB Footprints
SRP1265C-100M - Bourns PCB footprint - Inductors Precision Moulded - Inductors Precision Moulded - SRP1265C-150M
click to zoom
3D Models
SRP1265C-100M - Bourns - 3D model - Inductors Precision Moulded - SRP1265C-150M
click to zoom

SRP1265C-100M Details

  • Manufacturer Part Number:

    SRP1265C-100M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    0

  • Case/Size Code:

    5050

  • Construction:

    Rectangular

  • Core Material:

    METAL ALLOY POWDER

  • DC Resistance:

    0.018 Ω

  • Inductance-Nom (L):

    10 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    6.2 mm

  • Package Length:

    12.6 mm

  • Package Style:

    SMT

  • Package Width:

    12.6 mm

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Quality Factor-Min (at L-nom):

    20

  • Rated Current-Max:

    12 A

  • Self Resonance Frequency:

    12 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

SRP1265C-100M Frequently Asked Questions (FAQs)

  • A symmetrical layout with a central ground plane and minimal track lengths is recommended. The datasheet provides a suggested PCB layout, but it's essential to consult with a PCB design expert to ensure optimal performance.
  • The SRP1265C-100M is designed to provide high-frequency noise attenuation, but its performance may degrade under extreme EMI conditions. It's essential to implement additional EMI shielding and filtering measures to ensure reliable operation.
  • The SRP1265C-100M is rated for operation from -40°C to +125°C, but derating may be necessary for high-current applications or extreme environmental conditions. Consult the datasheet and application notes for specific guidance.
  • Yes, the SRP1265C-100M is designed for high-reliability applications, but it's essential to follow Bourns' recommended design and testing guidelines to ensure compliance with relevant safety standards and regulations.
  • The SRP1265C-100M is designed to withstand overvoltage and overcurrent conditions within specified limits. However, it's essential to implement additional protection measures, such as fuses or surge protectors, to prevent damage or failure.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SRP1265C-100M Overview

Use the download button to access the SRP1265C-100M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SRP12, or try a keyword search, such as Fixed Inductors
