SRP1265C-330M footprint, schematic symbol and 3D model by Bourns

Symbol

PCB Footprints

3D Models

SRP1265C-330M Details

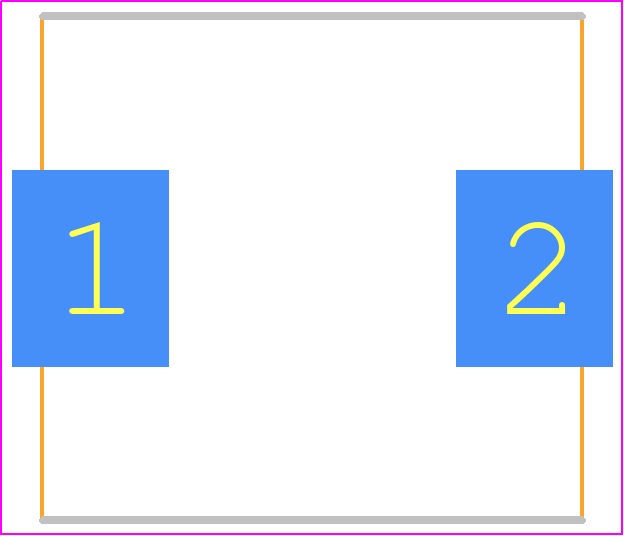

The recommended PCB footprint for the SRP1265C-330M is a rectangular pad with dimensions of 12.7 mm x 6.35 mm, with a 1.27 mm diameter hole in the center for the radial lead.
Yes, the SRP1265C-330M is rated for operation up to 150°C, making it suitable for high-temperature applications. However, the component's performance and lifespan may be affected at extreme temperatures.
To ensure proper soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the PCB pads. Hold the component in place with tweezers and apply gentle pressure while soldering.
The maximum allowable voltage for the SRP1265C-330M is 350 VDC. Exceeding this voltage may damage the component or affect its performance.
Yes, the SRP1265C-330M is suitable for high-frequency applications up to 100 kHz. However, the component's performance may degrade at higher frequencies, and additional filtering or shielding may be required.

Community Provided

System Verified

Community Approved

Use the download button to access the SRP1265C-330M schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SRP12, or try a keyword search, such as Fixed Inductors
