The recommended land pattern for SRP1265CC-6R8M can be found in the Bourns Application Note S-8151, which provides detailed guidelines for PCB layout and land pattern design.
According to Bourns' documentation, the power rating of SRP1265CC-6R8M should be derated by 1.25% per degree Celsius above 70°C. This means that at 85°C, the power rating would be approximately 75% of the maximum rated power.
Although the datasheet specifies a rated voltage of 6.8V, the maximum allowable voltage for SRP1265CC-6R8M is 10V, as stated in the Bourns' reliability report.
While SRP1265CC-6R8M is primarily designed for low-frequency applications, it can be used in high-frequency applications up to 100 kHz with proper impedance matching and decoupling. However, it's essential to consult with Bourns' application engineers to ensure the component meets the specific requirements of your design.
The ESR of SRP1265CC-6R8M is approximately 20 mohms, as specified in the Bourns' datasheet. However, this value may vary depending on the frequency and operating conditions of the component.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SRP1265CC-6R8M Overview

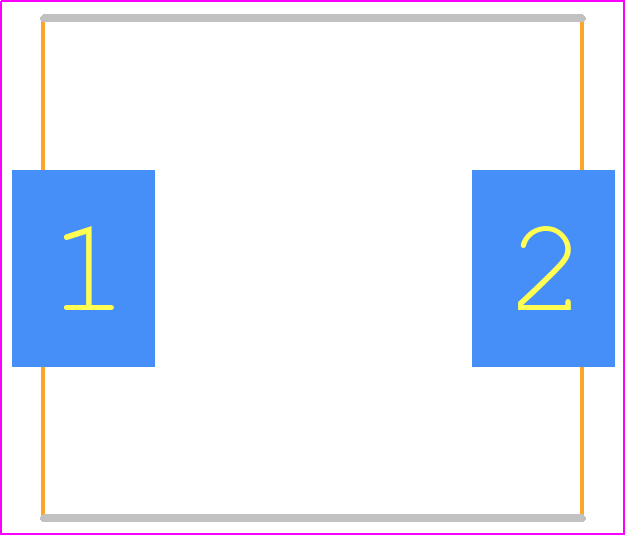

Use the download button to access the SRP1265CC-6R8M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SRP12,
or try a keyword search, such as Fixed Inductors
