The recommended land pattern for SRP1265WA-4R7M can be found in the Bourns Application Note S-8153, which provides detailed guidelines for PCB layout and land pattern design.
While the SRP1265WA-4R7M is rated for operation up to 125°C, it's essential to consider the derating curves and thermal management strategies to ensure reliable operation in high-temperature applications. Consult with Bourns' technical support for specific guidance.
To prevent ESD damage, follow proper handling and storage procedures, such as using ESD-safe packaging, wrist straps, and mats. During assembly, ensure that the component is not exposed to static electricity, and consider using ESD protection devices in the circuit design.
Bourns recommends following the JEDEC J-STD-020D.1 standard for soldering profiles, which specifies a peak temperature of 260°C and a dwell time of 30-45 seconds. However, it's essential to consult with Bourns' technical support for specific guidance on soldering profiles and processes.
While the SRP1265WA-4R7M is designed to operate in a variety of environments, it's essential to consider the moisture sensitivity level (MSL) rating of the component. Bourns recommends following the IPC/JEDEC J-STD-020D.1 standard for moisture sensitivity and handling. In humid or moist environments, consider using conformal coatings or other environmental protection measures.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SRP1265WA-4R7M Overview

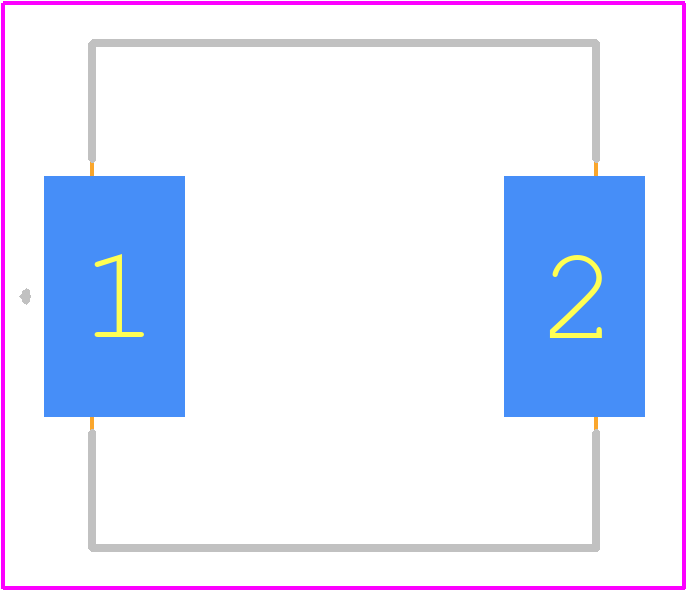

Use the download button to access the SRP1265WA-4R7M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SRP12,
or try a keyword search, such as Fixed Inductors
