SRP1770C-100M - Bourns

Description: Fixed Inductors Ind,17.8x16.9x6.7mm,10uH 20%,17A,Shd,SMD

Download SRP1770C-100M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SRP1770C-100M - Bourns - PCB symbol
click to zoom

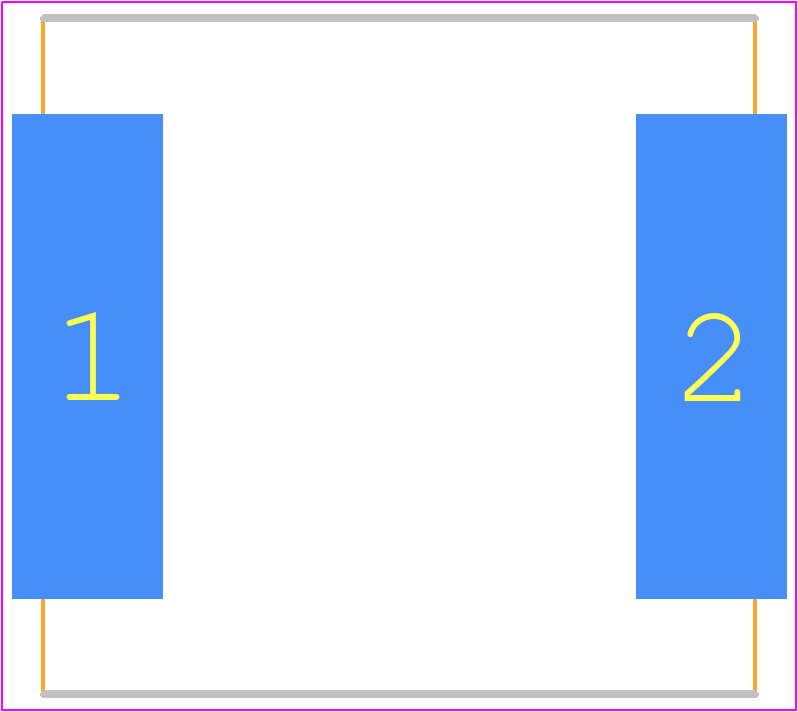

PCB Footprints
SRP1770C-100M - Bourns PCB footprint - Inductors Precision Moulded - Inductors Precision Moulded - SRP1770C-1
click to zoom
3D Models
SRP1770C-100M - Bourns - 3D model - Inductors Precision Moulded - SRP1770C-1
click to zoom

SRP1770C-100M Details

  • Manufacturer Part Number:

    SRP1770C-100M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    0

  • Case/Size Code:

    6767

  • Construction:

    Rectangular

  • Core Material:

    POWDERED METAL ALLOY

  • DC Resistance:

    0.013 Ω

  • Inductance-Nom (L):

    10 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e2

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    6.7 mm

  • Package Length:

    16.9 mm

  • Package Style:

    SMT

  • Package Width:

    16.9 mm

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Quality Factor-Min (at L-nom):

    20

  • Rated Current-Max:

    17 A

  • Self Resonance Frequency:

    12 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Nickel (Sn/Ni)

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

SRP1770C-100M Frequently Asked Questions (FAQs)

  • A symmetrical layout with a central grounding point and minimal track lengths is recommended to minimize electromagnetic interference (EMI) and ensure optimal performance.
  • Use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the pads. Ensure the component is properly aligned and the solder joints are clean and free of oxidation.
  • The SRP1770C-100M is rated for operation from -40°C to 125°C, but derating may be necessary for high-temperature applications.
  • Yes, the SRP1770C-100M is designed to withstand vibrations up to 10G, but additional mechanical support may be necessary for extreme vibration environments.
  • Use a multimeter to check for proper voltage and current levels, and inspect the component for signs of physical damage or overheating. Consult the datasheet and application notes for troubleshooting guides.
