SRR0603-3R3ML - Bourns

Description: 3.3 µH Shielded Drum Core, Wirewound Inductor 1.8 A 55mOhm Max Nonstandard, Corner Terminals -40°C ~ 125°C

Download SRR0603-3R3ML Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SRR0603-3R3ML - Bourns - PCB symbol
click to zoom
PCB Footprints

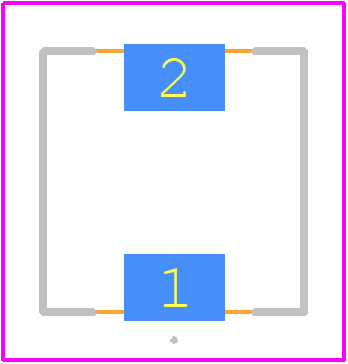

SRR0603-3R3ML - Bourns PCB footprint - Other - Other - SRR0603-3R3ML-1
click to zoom
3D Models
SRR0603-3R3ML - Bourns - 3D model - Other - SRR0603-3R3ML-1
click to zoom

SRR0603-3R3ML Details

  • Manufacturer Part Number:

    SRR0603-3R3ML

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    7.8

  • Case/Size Code:

    2626

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.055 Ω

  • Inductance-Nom (L):

    3.3 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    3.1 mm

  • Package Length:

    6.5 mm

  • Package Style:

    SMT

  • Package Width:

    6.5 mm

  • Packing Method:

    TR, Embossed, 7 Inch

  • Rated Current-Max:

    1.8 A

  • Self Resonance Frequency:

    85 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    20%
