The recommended PCB footprint for SRR0745A-180M is a rectangular pad with dimensions of 4.5mm x 3.5mm, with a 1.5mm diameter hole in the center for the radial lead.
While SRR0745A-180M is rated for operation up to 125°C, it's recommended to derate the current rating by 1.5% per degree above 80°C to ensure reliable operation.
To ensure reliability in high-vibration environments, it's recommended to use a secure mounting method, such as a screw or adhesive, and to follow proper PCB design and assembly guidelines.
Yes, SRR0745A-180M is compatible with lead-free soldering processes, with a recommended soldering temperature of 260°C (max) for 10 seconds (max).
Store SRR0745A-180M in a dry, cool place, away from direct sunlight and moisture. Handle the components by the body, avoiding touching the leads or electrical contacts.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SRR0745A-180M Overview

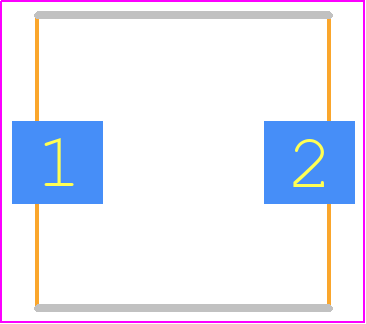

Use the download button to access the SRR0745A-180M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SRR07,
or try a keyword search, such as Fixed Inductors
