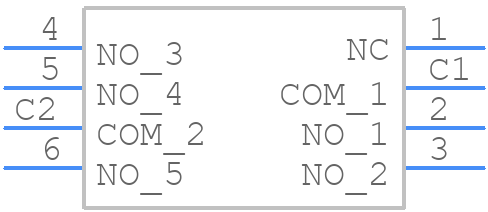

SS-10-16SP-AE - Nidec Copal

SS-10-16SP-AE Details

• Manufacturer Part Number:

  SS-10-16SP-AE

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.20

• Factory Lead Time:

  15 Weeks

• Manufacturer:

  Nidec Copal Electronics Corporation

• YTEOL:

  8

• Additional Feature:

  APPROVAL: UL

• Body Breadth:

  10 mm

• Body Height:

  7 mm

• Body Length or Diameter:

  10 mm

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  GOLD

• Contact Current(DC)-Max:

  0.1 A

• Contact (DC) Max Rating R Load:

  0.1A@5VDC

• Contact Resistance:

  0.1 mΩ

• Contact Timing:

  MAKE-BEFORE-BREAK

• Contact Voltage(DC)-Max:

  5 V

• Dielectric Withstand Volts:

  300VAC V

• Electrical Life:

  500 Cycle(s)

• End Contact Material:

  COPPER ALLOY

• End Contact Plating:

  GOLD

• Housing Material:

  POLYBUTYLENE TEREPHTHALATE

• Indexing Angle:

  28 deg

• Insulation Resistance:

  100000000 Ω

• Insulator Material:

  POLYBUTYLENE TEREPHTHALATE

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Positions:

  6

• Number of Switch Sections:

  1

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -25 °C

• PCB Hole Count:

  8

• Packing Method:

  BAG

• Solderability:

  HAND/REFLOW

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  SP6T

• Switch Type:

  ROTARY SWITCH

• Terminal Finish:

  Gold (Au)

• Terminal Length:

  0.177 inch

• Terminal Material:

  COPPER ALLOY

• Termination Type:

  SOLDER
