The recommended mating sequence is to mate the connectors in a perpendicular direction, ensuring the guides are aligned, and then rotate the connector into place. This helps prevent damage to the contacts and ensures proper mating.
Yes, the SS-120-S-2 connector is designed to withstand high-vibration environments. Samtec's Tiger Eye contact system provides a secure connection and helps to reduce the effects of vibration and shock.
The maximum operating temperature for the SS-120-S-2 connector is 125°C (257°F). However, it's essential to note that the temperature rating may vary depending on the specific application and environment.
The SS-120-S-2 connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's crucial to consult Samtec's environmental testing data and application notes to ensure the connector meets the specific requirements of your application.
The SS-120-S-2 connector is designed to accommodate standard PCB thicknesses. However, Samtec offers custom connector solutions for non-standard PCB thicknesses. It's recommended to consult with Samtec's technical support team to determine the best solution for your specific application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SS-120-S-2 Overview

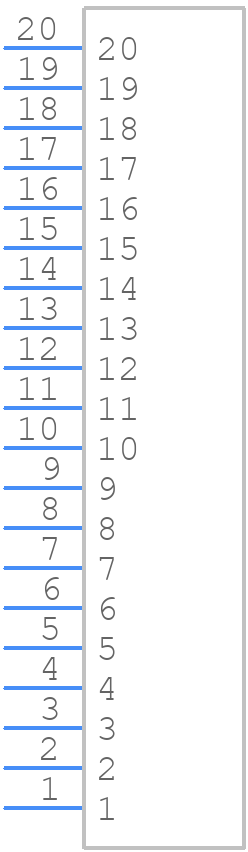

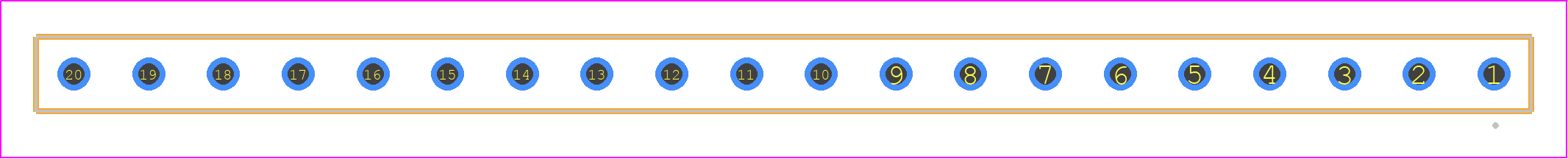

Use the download button to access the SS-120-S-2 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SS-12,
or try a keyword search, such as Headers and Edge Type Connectors
