The recommended torque for the screw locks is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure mating and prevent damage to the connector.
Yes, the SS-130-T-2 is designed to withstand high-vibration environments. Samtec's testing has shown that it can survive up to 20 Gs of vibration, making it suitable for applications such as aerospace, industrial, and automotive.
The SS-130-T-2 has an operating temperature range of -55°C to +125°C, making it suitable for use in a wide range of applications, including those with extreme temperature requirements.
Yes, the SS-130-T-2 is compatible with lead-free soldering processes, including RoHS and WEEE compliant applications. Samtec recommends following the recommended soldering profile to ensure reliable connections.
The SS-130-T-2 has a typical mating cycle life of 500-1000 cycles, depending on the application and environmental conditions. This makes it suitable for use in applications where frequent mating and unmating are required.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SS-130-T-2 Overview

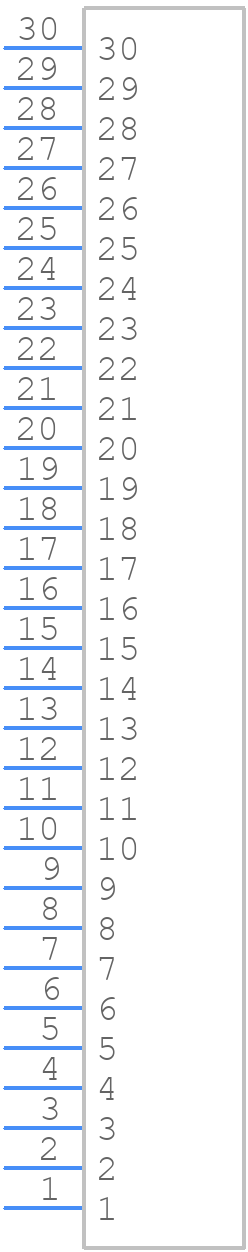

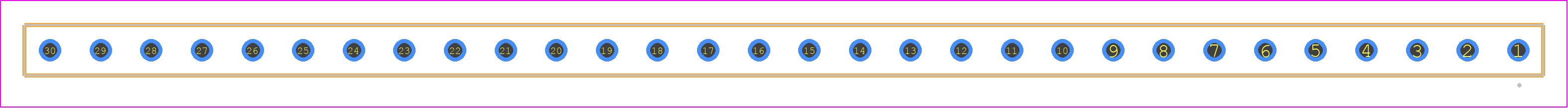

Use the download button to access the SS-130-T-2 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SS-13,
or try a keyword search, such as Headers and Edge Type Connectors
