Bel Fuse provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance, thermal management, and reliability.
The SS-51000-003 is designed to provide excellent high-frequency noise and EMI attenuation. The device's internal construction and shielding help to reduce electromagnetic interference, and its ferrite core material provides additional noise suppression.
While the datasheet specifies an operating temperature range of -40°C to +125°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to +100°C for optimal performance.
The SS-51000-003 is designed to meet the requirements of various industrial and automotive applications, which often involve high-vibration and high-shock environments. However, it's crucial to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
To ensure the device's reliability and longevity, it's essential to follow proper storage, handling, and soldering procedures. Additionally, operating the device within its specified ratings, providing adequate thermal management, and using proper PCB design and layout practices can help to minimize the risk of premature failure.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SS-51000-003 Overview

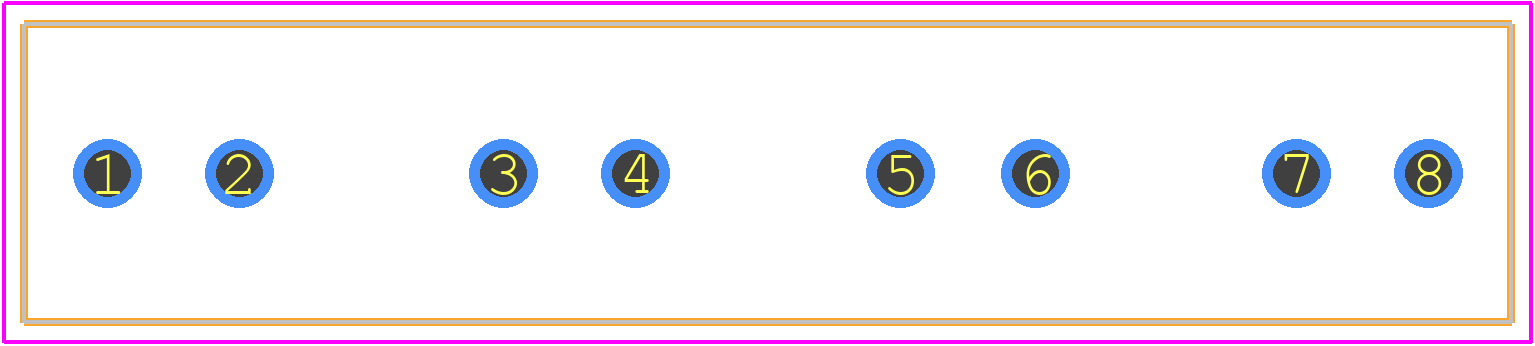

Use the download button to access the SS-51000-003 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SS-51,
or try a keyword search, such as Power Connectors
