Bel Fuse recommends a specific PCB layout and land pattern to ensure optimal performance and thermal management. It's essential to follow the recommended layout to minimize thermal resistance and ensure reliable operation. Consult the Bel Fuse application note or contact their technical support for more information.
The SS-6466-NF is designed to provide excellent high-frequency noise attenuation and EMI filtering. The device's internal construction and shielding help to reduce electromagnetic interference and radio-frequency interference. However, additional external filtering or shielding may be necessary depending on the specific application and environment.
While the datasheet specifies an operating temperature range of -40°C to 100°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the SS-6466-NF within a temperature range of 0°C to 80°C for optimal performance and longevity.
The SS-6466-NF is designed for general-purpose applications, but it may not meet the stringent requirements of high-reliability or safety-critical applications. Bel Fuse offers other products that are specifically designed for high-reliability and safety-critical applications, such as the 0RFD series. Consult with Bel Fuse technical support to determine the most suitable product for your specific application.
To prevent damage and ensure the longevity of the SS-6466-NF, it's essential to follow proper storage and handling procedures. Store the devices in their original packaging, away from direct sunlight, moisture, and extreme temperatures. Handle the devices by the body, avoiding touching the leads or electrical contacts to prevent damage or contamination.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SS-6466-NF Overview

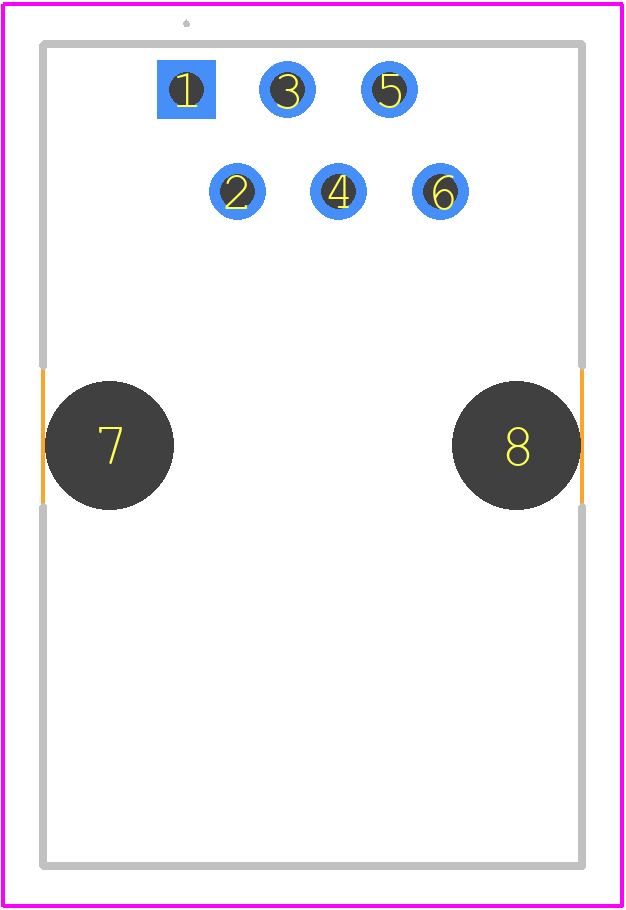

Use the download button to access the SS-6466-NF schematic symbol, PCB footprint, and 3D model.
