SS-651010S-A-NF footprint, schematic symbol and 3D model by BelFuse

Symbol

click to zoom

PCB Footprints

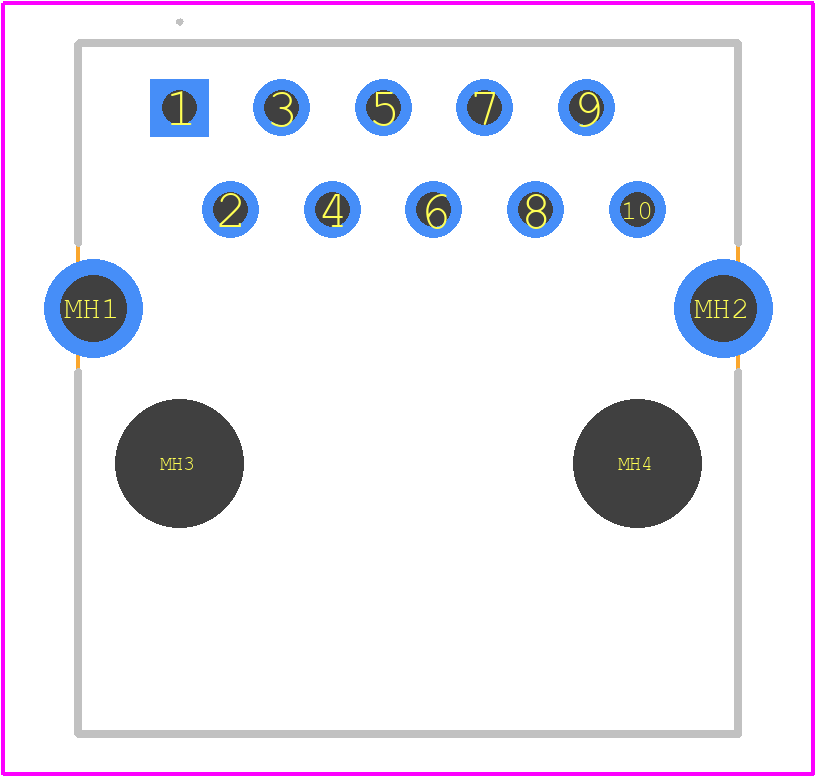

SS-651010S-A-NF - BelFuse PCB footprint - Other - Other - SS-651010S-A-NF-1

click to zoom

3D Models

SS-651010S-A-NF - BelFuse - 3D model - Other - SS-651010S-A-NF-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SS-651010S-A-NF
Part Number SS-651010S-A-NF
Manufacturer BelFuse
Pin Count 12
Part Category Connector
Package Category Other
Footprint Name Other - SS-651010S-A-NF-1
Released Date Aug 20, 2022
Last Modified Date Oct 26, 2023 1:23 PM UTC
Pinout / Pin List Click Here (Member Only)

SS-651010S-A-NF Details

Manufacturer Part Number:
SS-651010S-A-NF
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
17 Weeks
Manufacturer:
Bel Fuse
YTEOL:
8
Additional Feature:
SHIELDED
Board Mounting Option:
HOLE .125-.137
Body Breadth:
0.68 inch
Body Depth:
0.68 inch
Body Length:
0.65 inch
Body/Shell Style:
JACK
Connector Type:
TELECOM AND DATACOM CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
NOT APPLICABLE
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Contact Style:
TELCOM, MODULAR
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
POLYETHYLENE
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number of Ports:
1
Option:
GENERAL PURPOSE
PCB Contact Pattern:
STAGGERED
Plating Thickness:
30u inch
Rated Current (Signal):
1.5 A
Reference Standard:
UL
Shell Finish:
NICKEL/TIN
Shell Material:
COPPER ALLOY
Terminal Length:
0.125 inch
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
10
UL Flammability Code:
94V-0

SS-651010S-A-NF Frequently Asked Questions (FAQs)

The recommended PCB layout and land pattern for the SS-651010S-A-NF can be found in the Bel Fuse application note AN-114, which provides detailed guidelines for proper PCB design and layout to ensure optimal performance and reliability.
The SS-651010S-A-NF is designed to provide excellent high-frequency noise attenuation and EMI filtering capabilities. The device's internal construction and materials are optimized to minimize electromagnetic interference and radio-frequency interference (RFI).
The SS-651010S-A-NF is rated for operation over a temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications, including industrial, automotive, and aerospace.
Yes, the SS-651010S-A-NF is compatible with lead-free soldering processes and is RoHS compliant, making it suitable for use in environmentally friendly and sustainable designs.
The typical lead time and availability for the SS-651010S-A-NF may vary depending on the region and distributor. It is recommended to check with authorized distributors or Bel Fuse directly for the most up-to-date information on lead times and availability.

Trust Checks

Community Provided

System Verified

Community Approved

SS-651010S-A-NF Overview

Use the download button to access the SS-651010S-A-NF schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SS-65, or try a keyword search, such as Telecom and Datacom Connectors
