Bel Fuse provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, thermal management, and reliability.
The SS-7066-NF is designed to handle inrush currents and high-surge conditions. However, it's crucial to consider the fuse's I²t rating, melting I²t, and arc voltage to ensure it can withstand the specific application's requirements.
In the event of a fault, the SS-7066-NF will rapidly open and clear the fault, minimizing damage to the circuit and surrounding components. The fuse's fast-acting characteristic helps to reduce the let-through energy and prevent further damage.
The SS-7066-NF has a maximum operating temperature of 125°C. For high-temperature applications, derating factors should be applied to ensure the fuse's reliability and performance. Consult Bel Fuse's application notes for specific derating guidelines.
To prevent damage and ensure reliability, store the SS-7066-NF in a cool, dry place, away from direct sunlight and moisture. Handle the fuse by the body, avoiding touching the leads or glass body to prevent electrostatic discharge (ESD) damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SS-7066-NF Overview

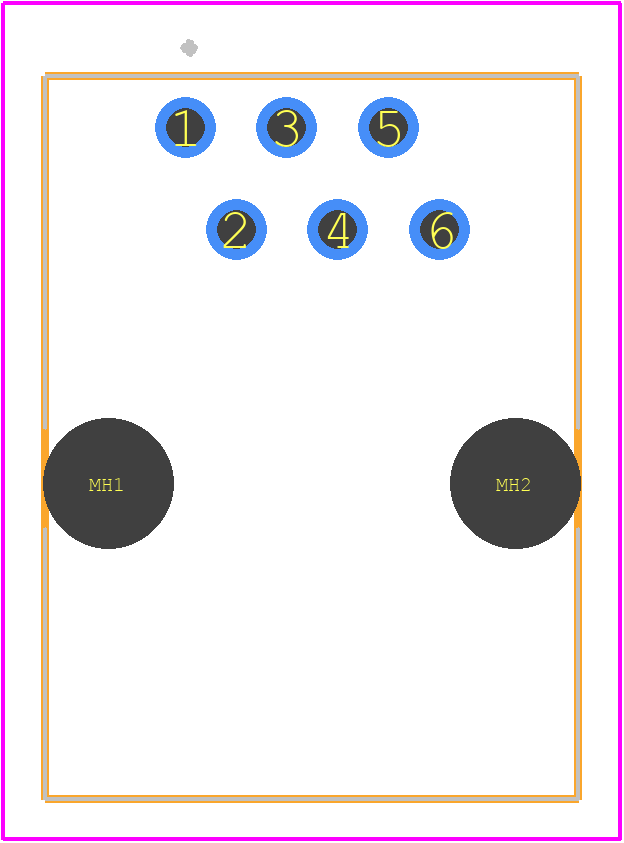

Use the download button to access the SS-7066-NF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SS-70,
or try a keyword search, such as Telecom and Datacom Connectors
