The recommended PCB layout for optimal performance of the SS-7188S-A-NF includes keeping the input and output traces as short as possible, using a solid ground plane, and placing the input and output capacitors close to the device.
To ensure the reliability of the SS-7188S-A-NF in high-temperature applications, it is recommended to derate the device's power rating according to the temperature derating curve provided in the datasheet, and to ensure good thermal management through proper heat sinking and airflow.
The SS-7188S-A-NF has built-in EMI filtering capabilities, with a typical attenuation of 30 dB at 1 MHz and 50 dB at 10 MHz. However, additional external filtering may be required depending on the specific application and regulatory requirements.
Yes, the SS-7188S-A-NF can be used in redundant or parallel configurations to increase power availability and reliability. However, it is recommended to consult with Bel Fuse's application engineers to ensure proper design and implementation.
The SS-7188S-A-NF has various agency approvals and certifications, including UL, cUL, and CE. Please consult the datasheet or contact Bel Fuse for the latest information on certifications and compliance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SS-7188S-A-NF Overview

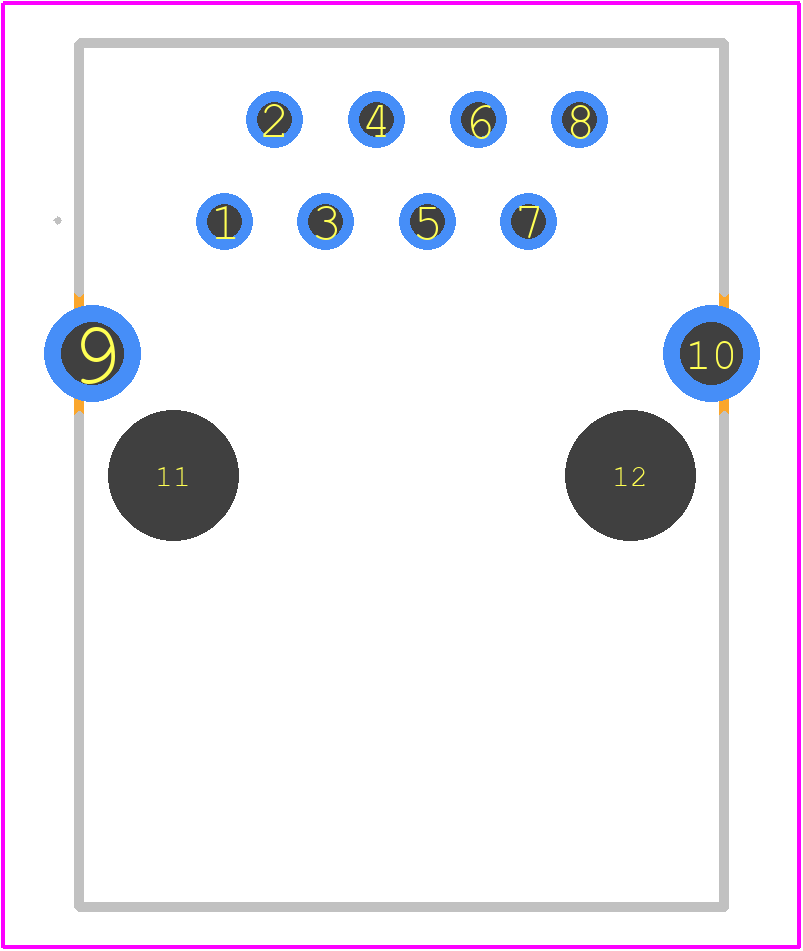

Use the download button to access the SS-7188S-A-NF schematic symbol, PCB footprint, and 3D model.
